NORDECO PLYWOOD square format 5х5

NORDECO PLYWOOD square format 5х5

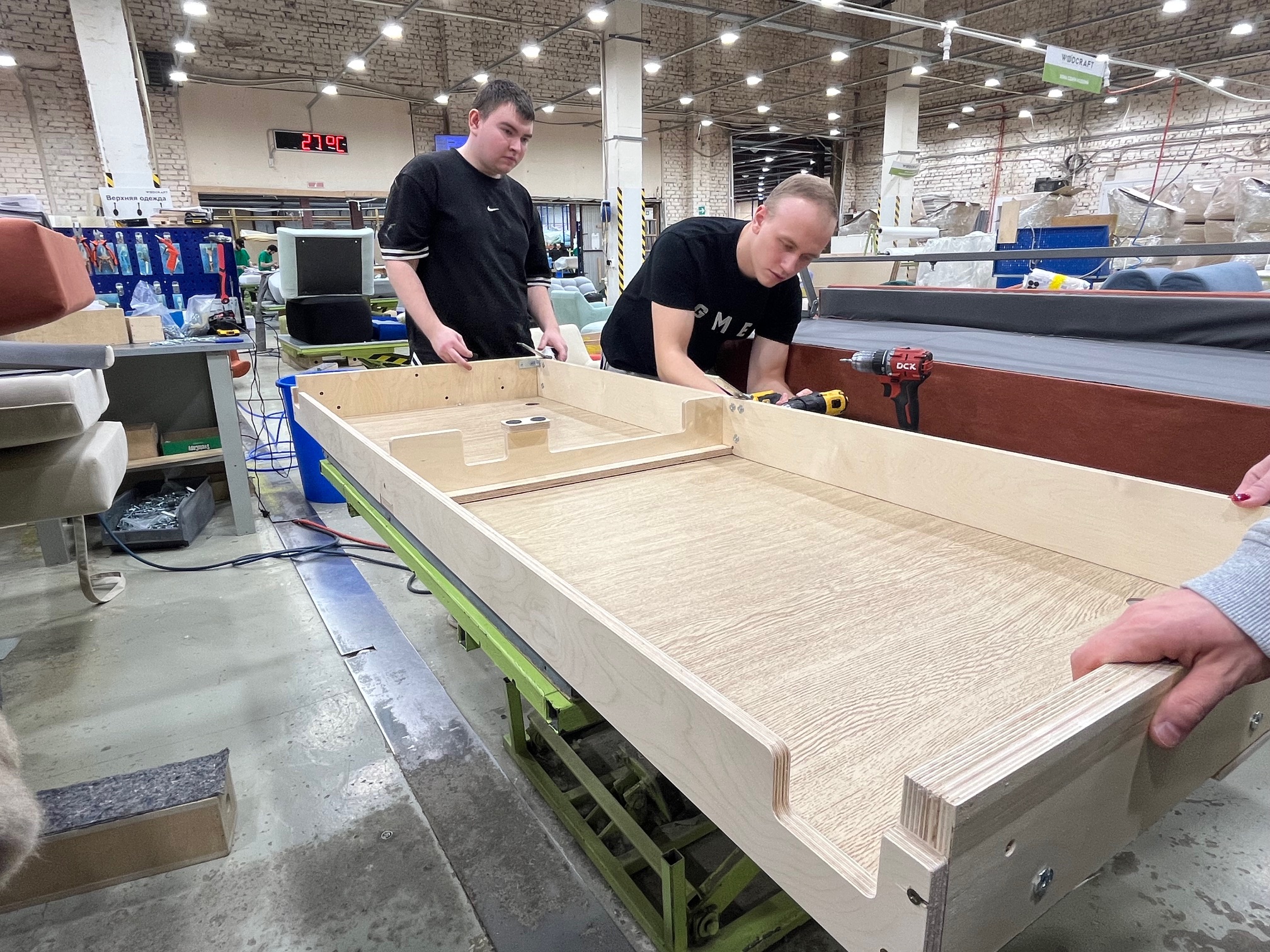

100% birch plywood 5×5 ft format, manufactured using urea-formaldehyde

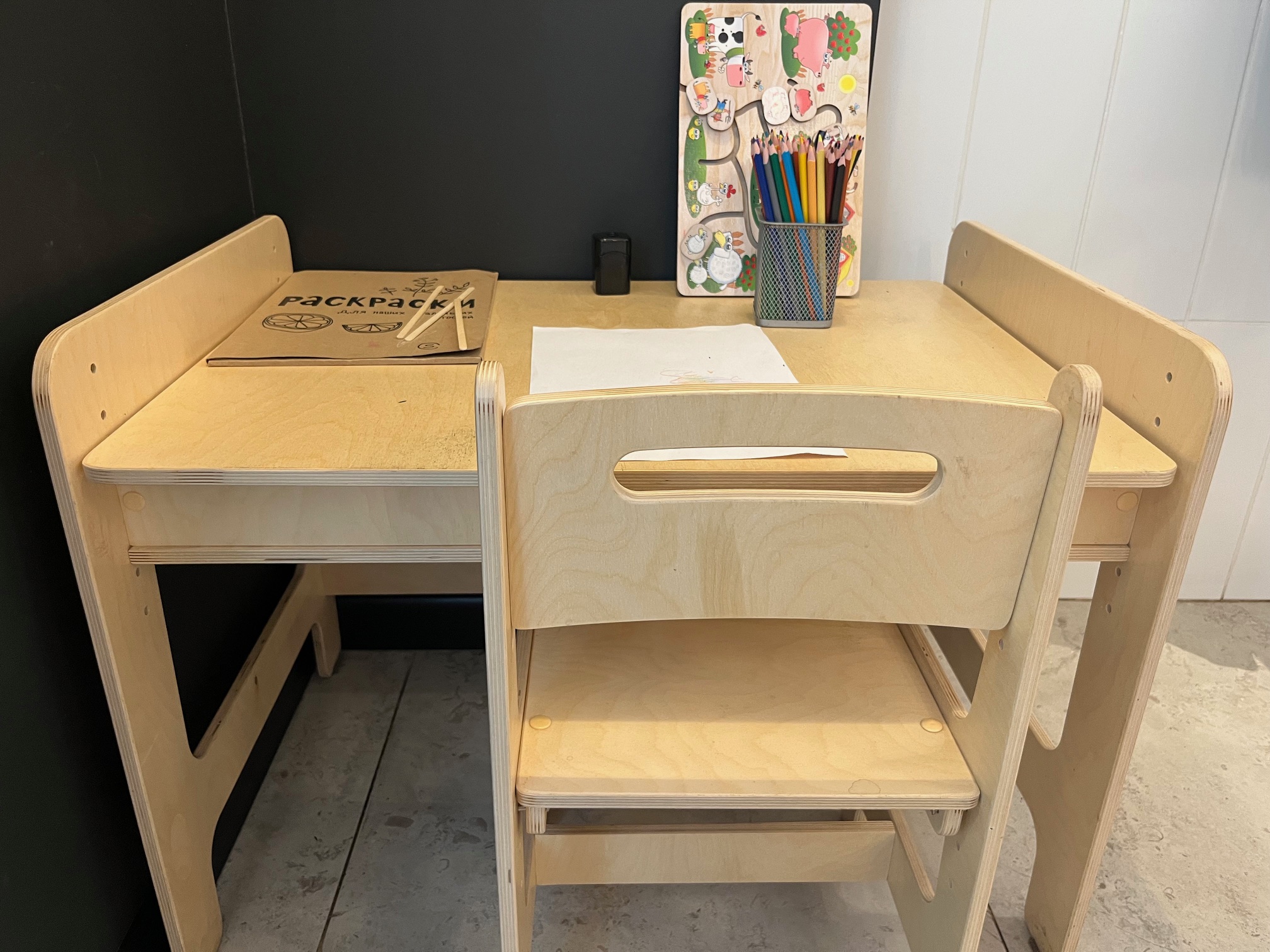

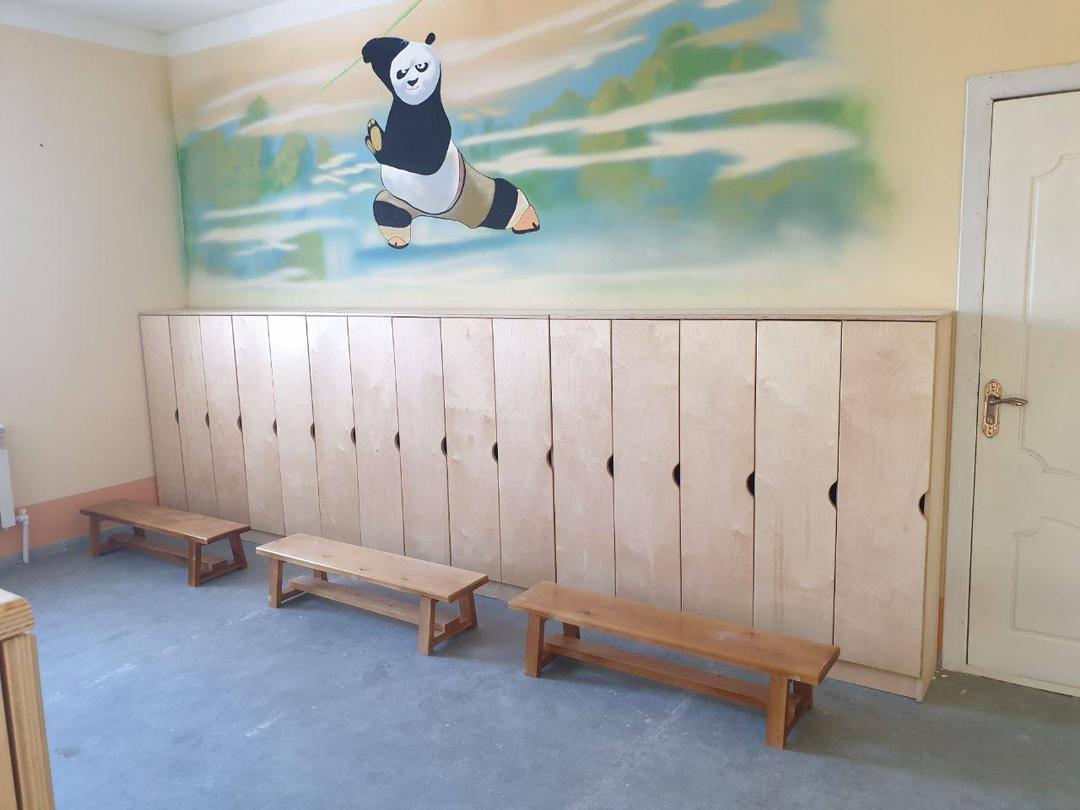

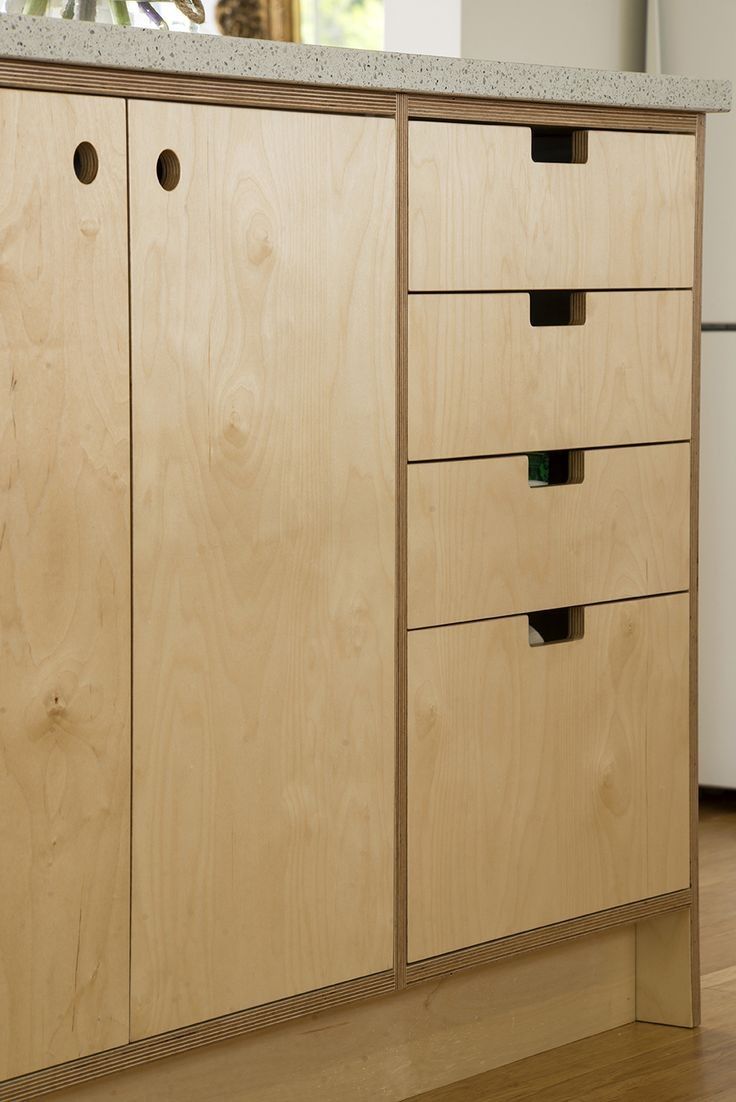

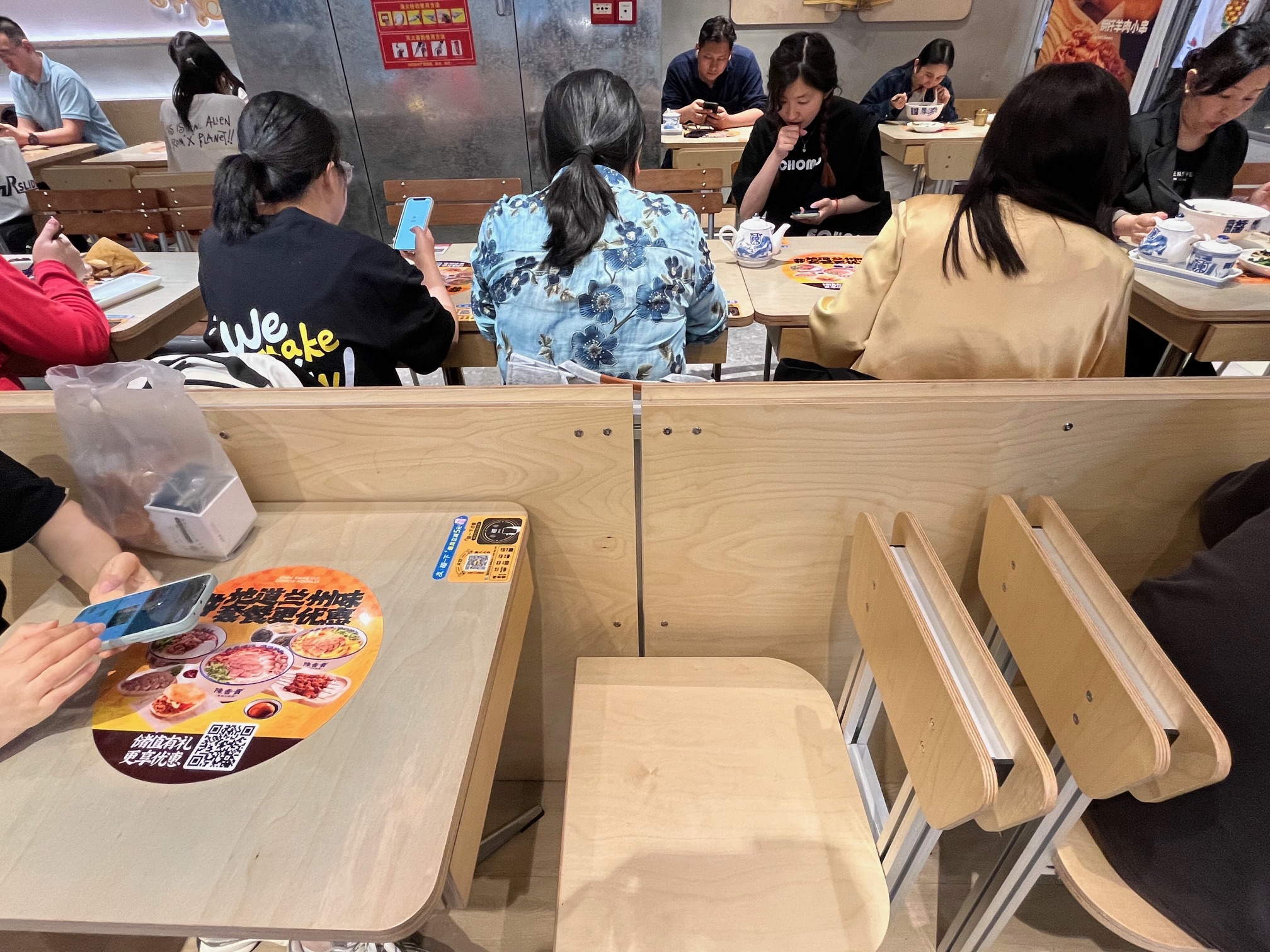

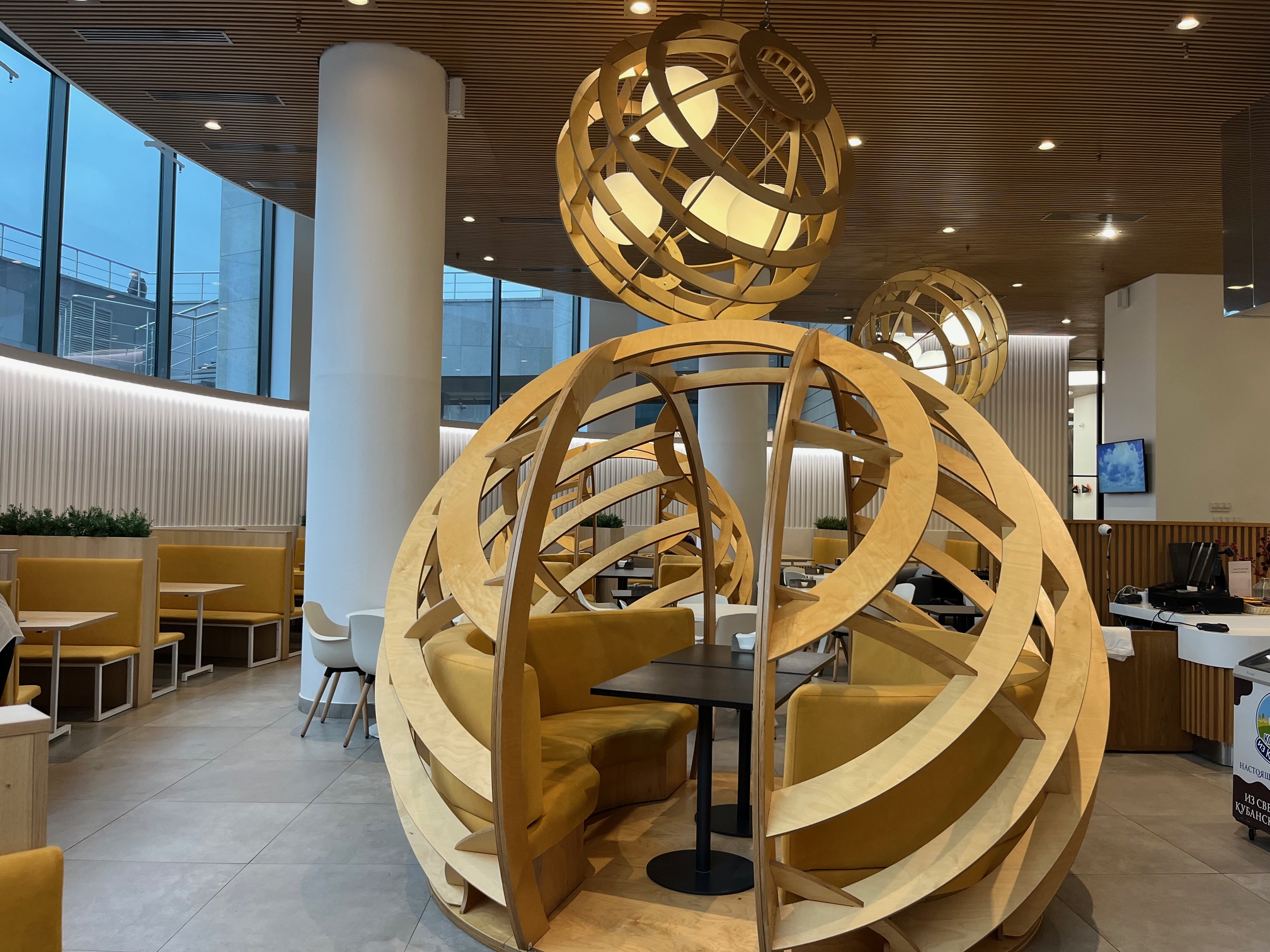

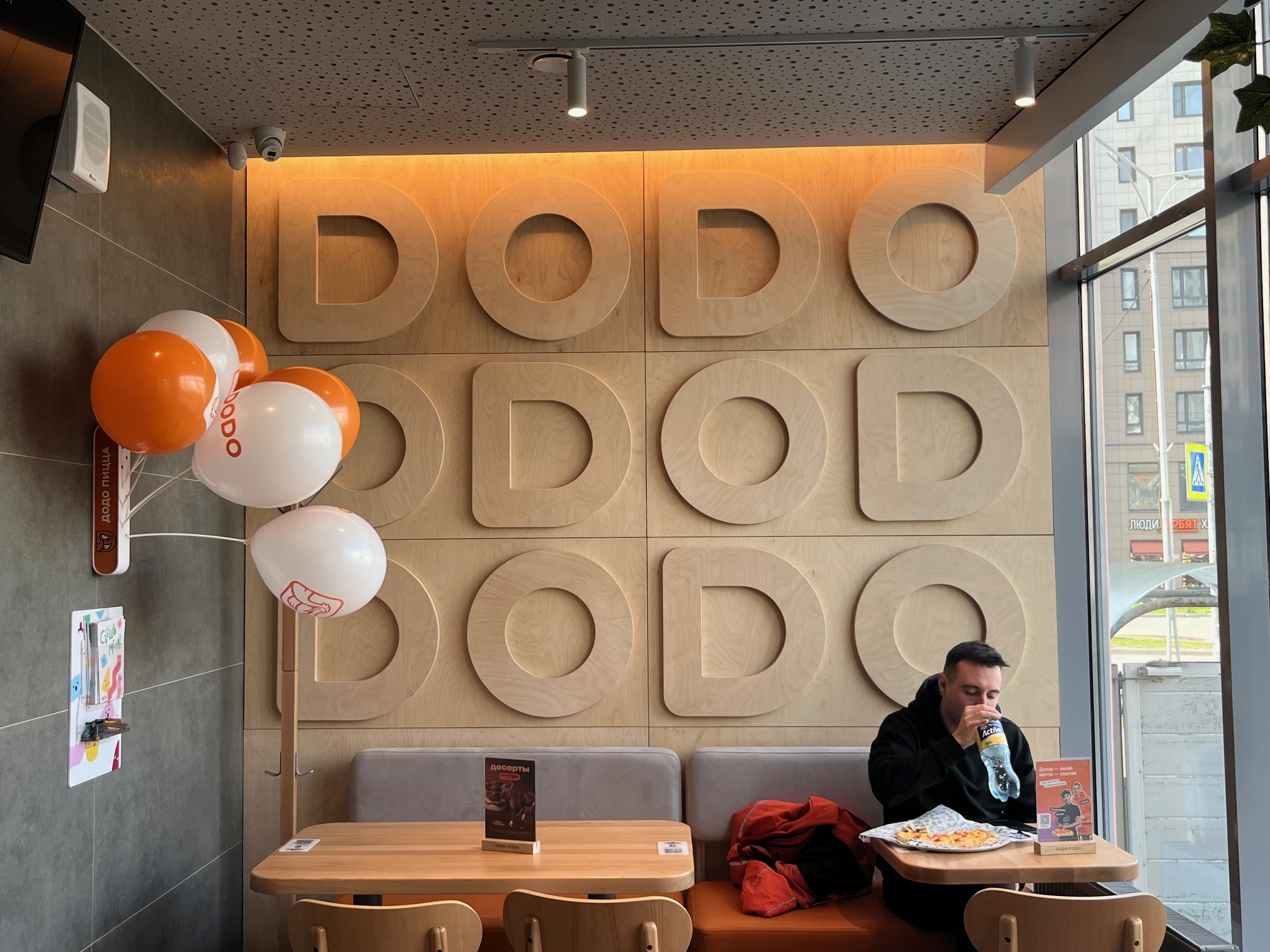

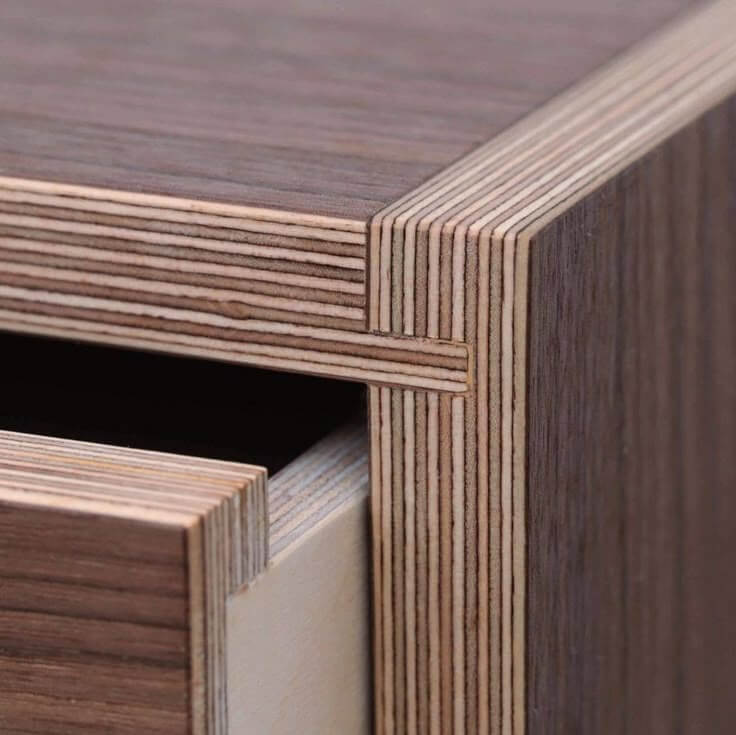

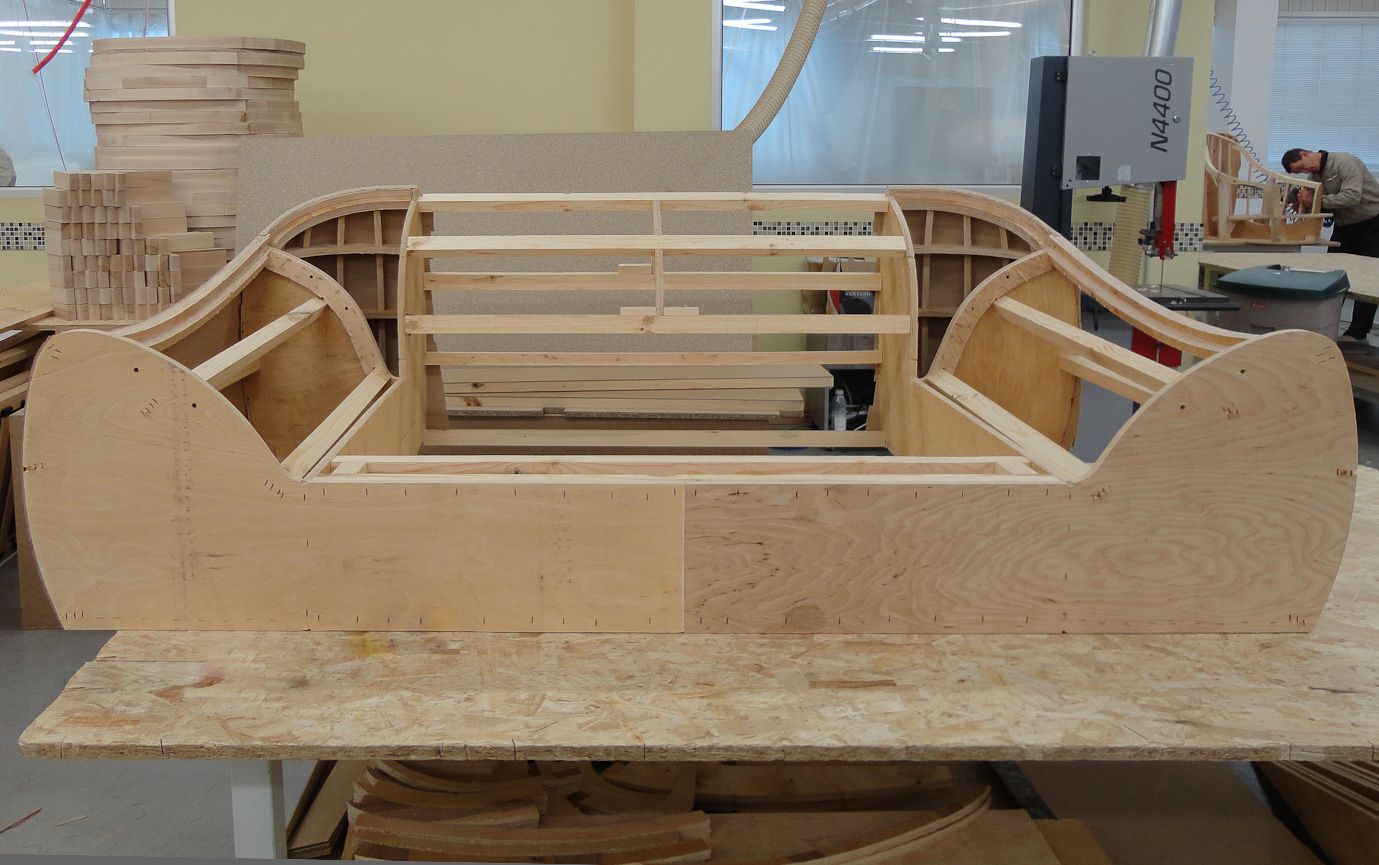

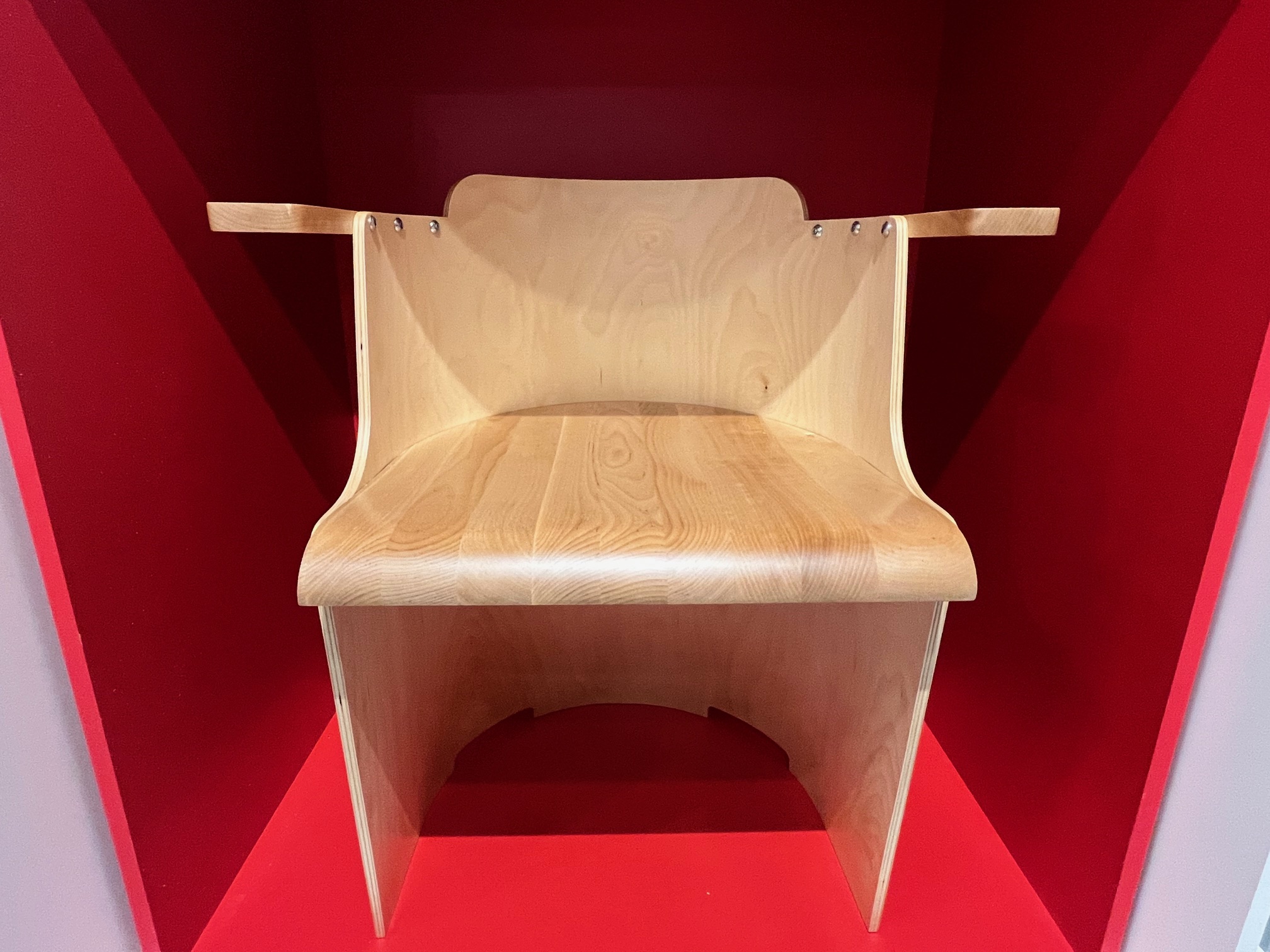

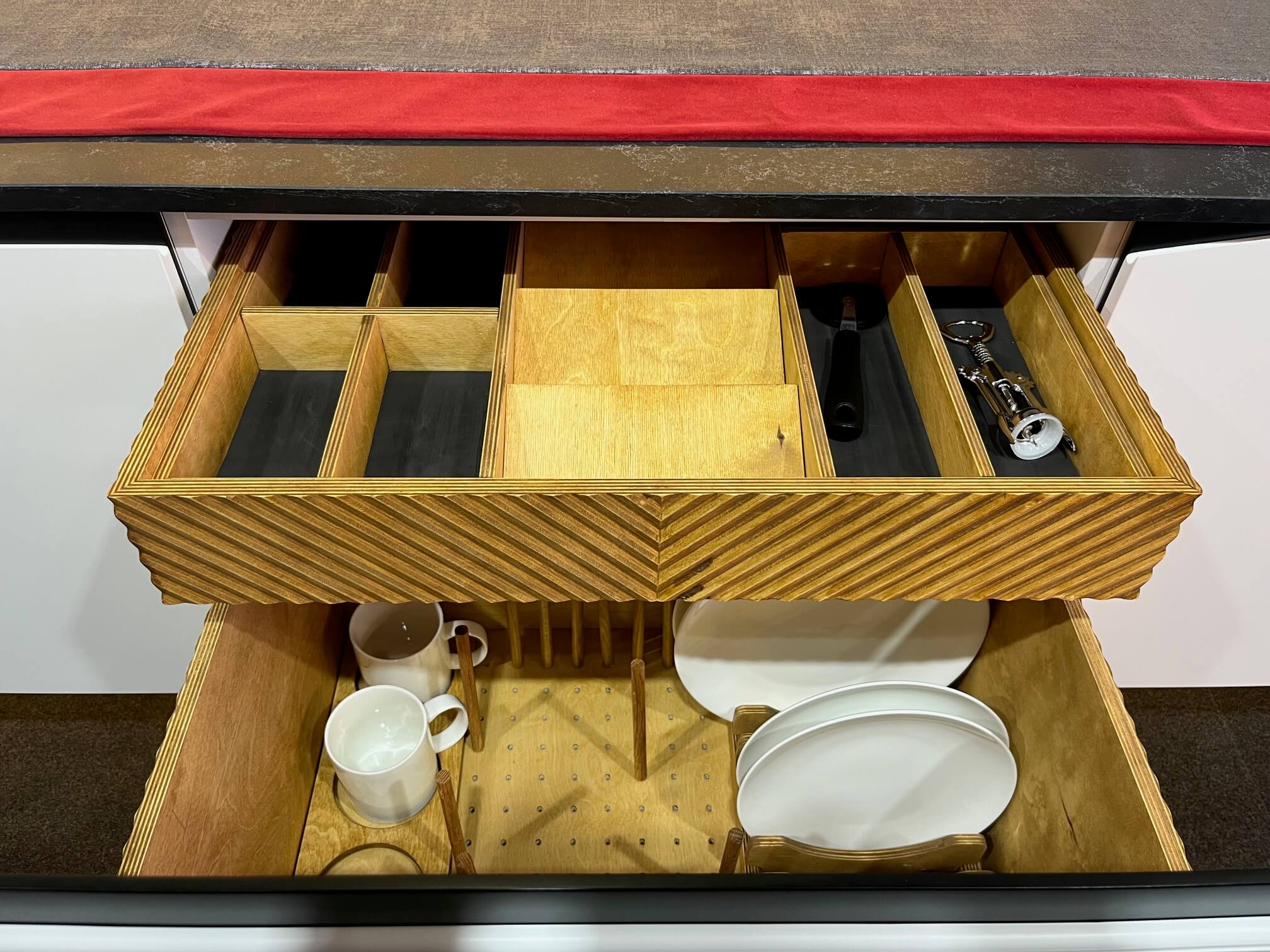

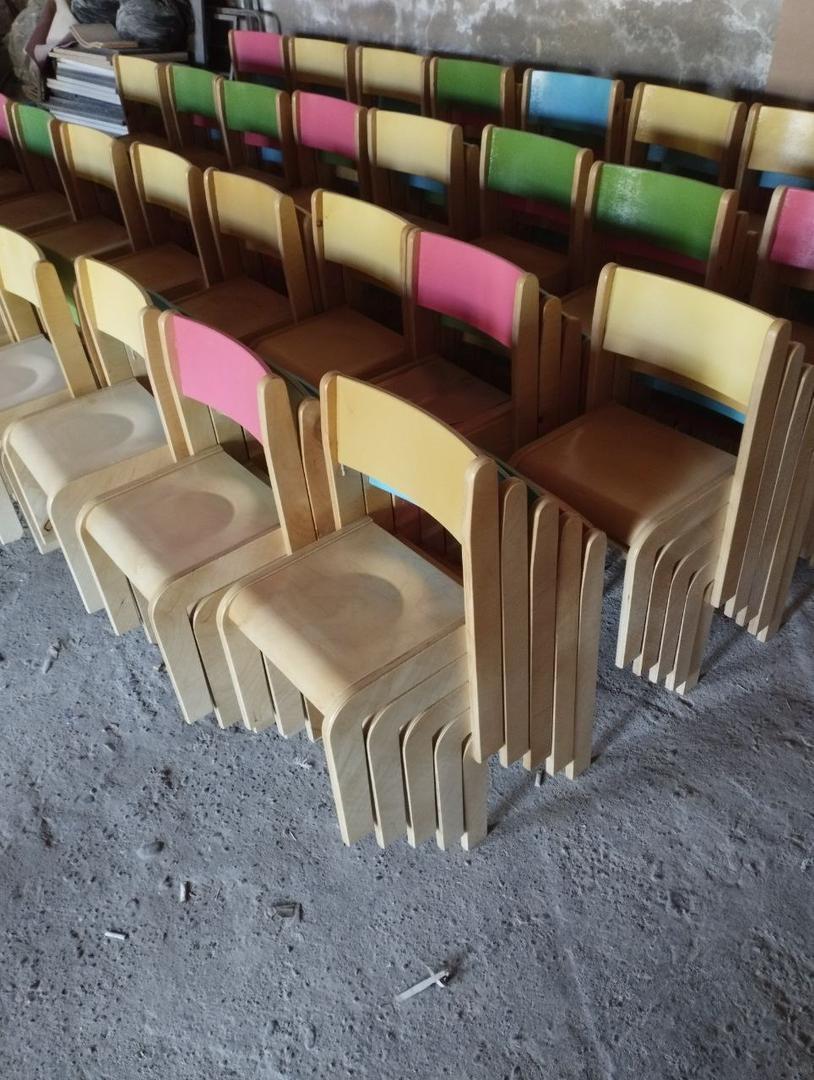

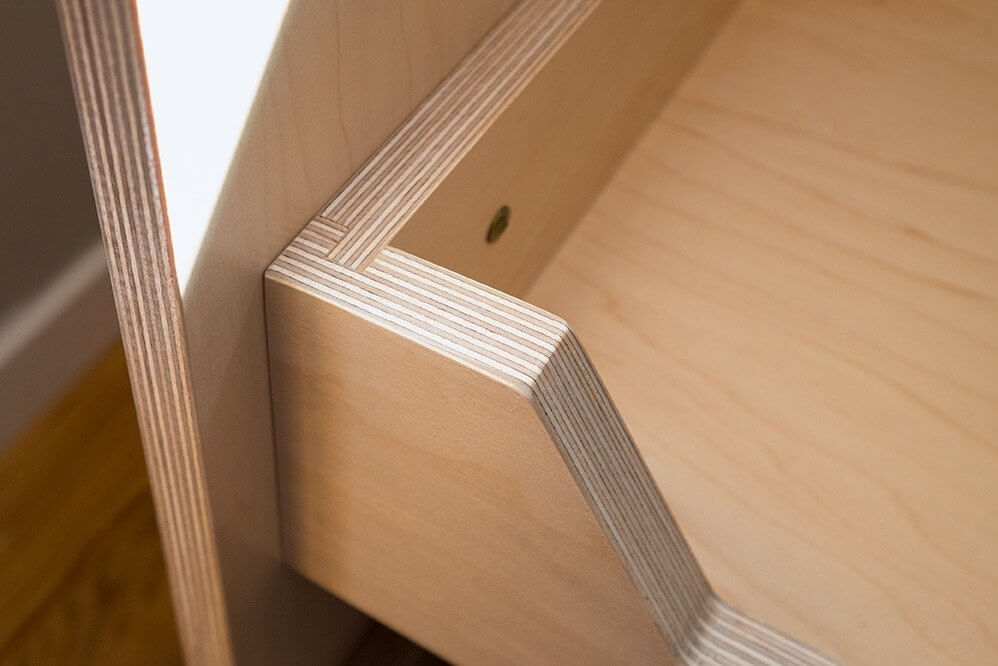

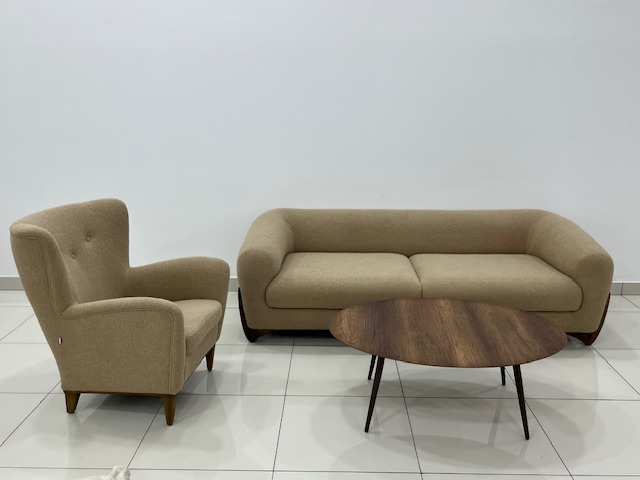

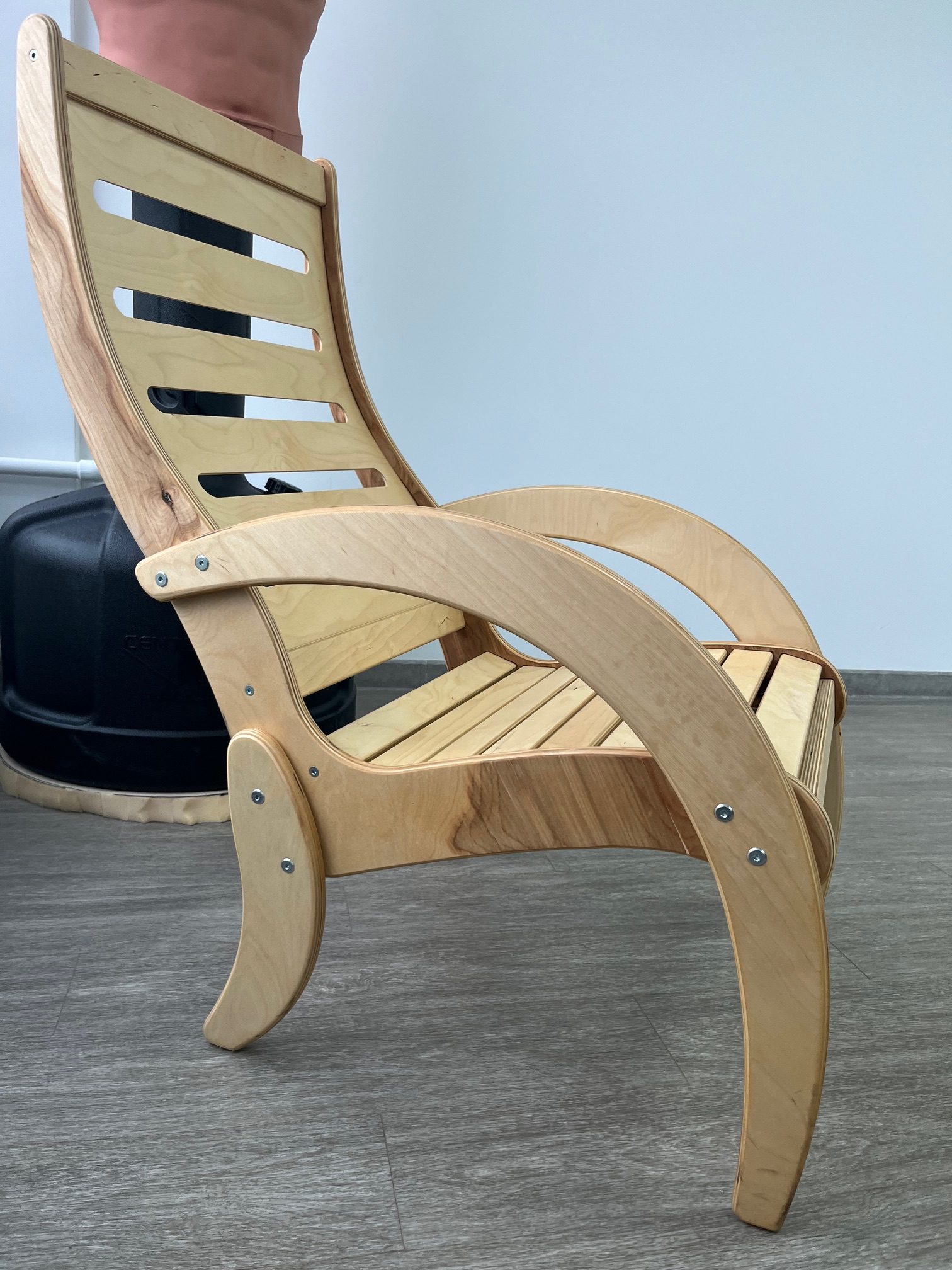

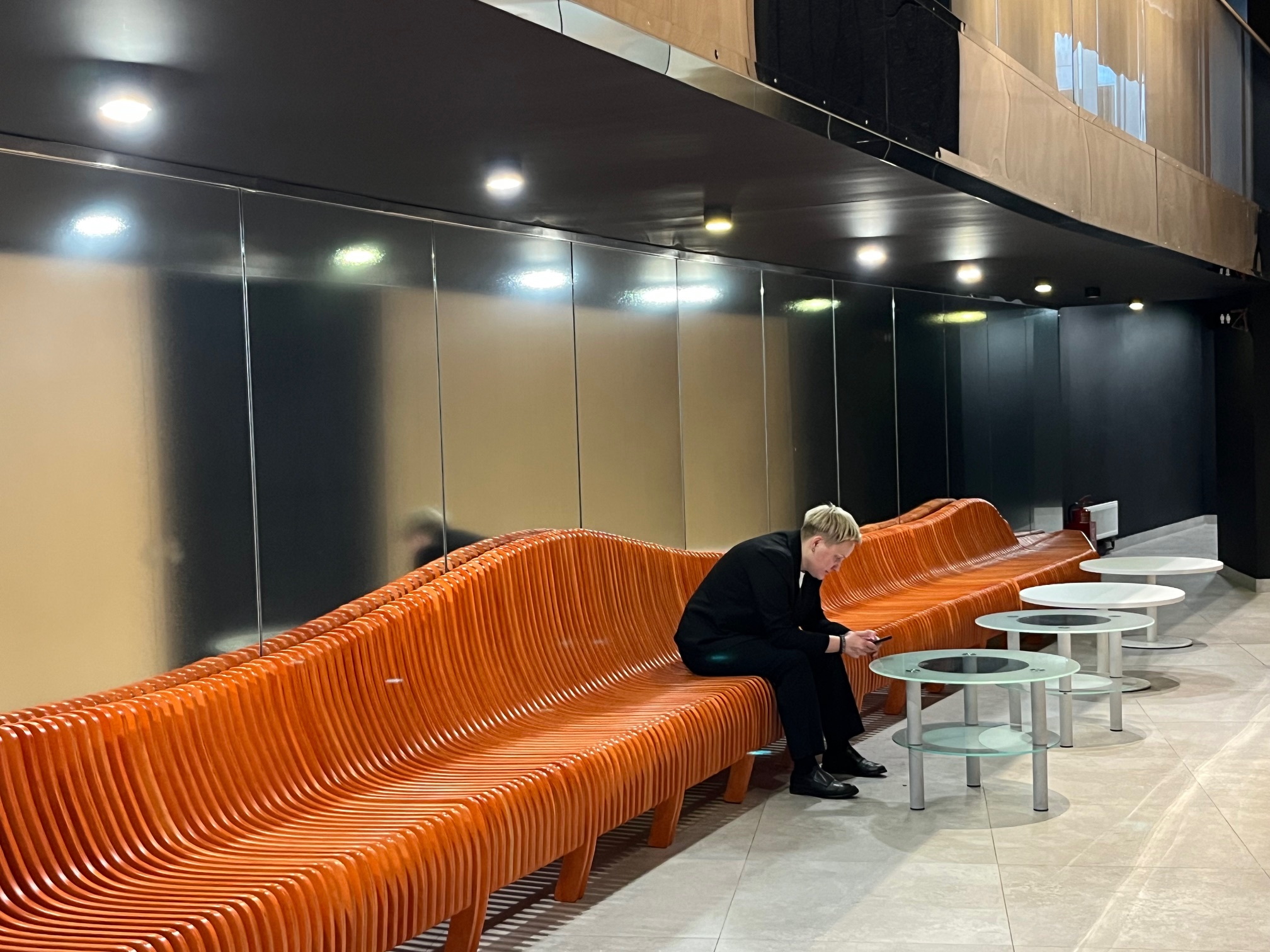

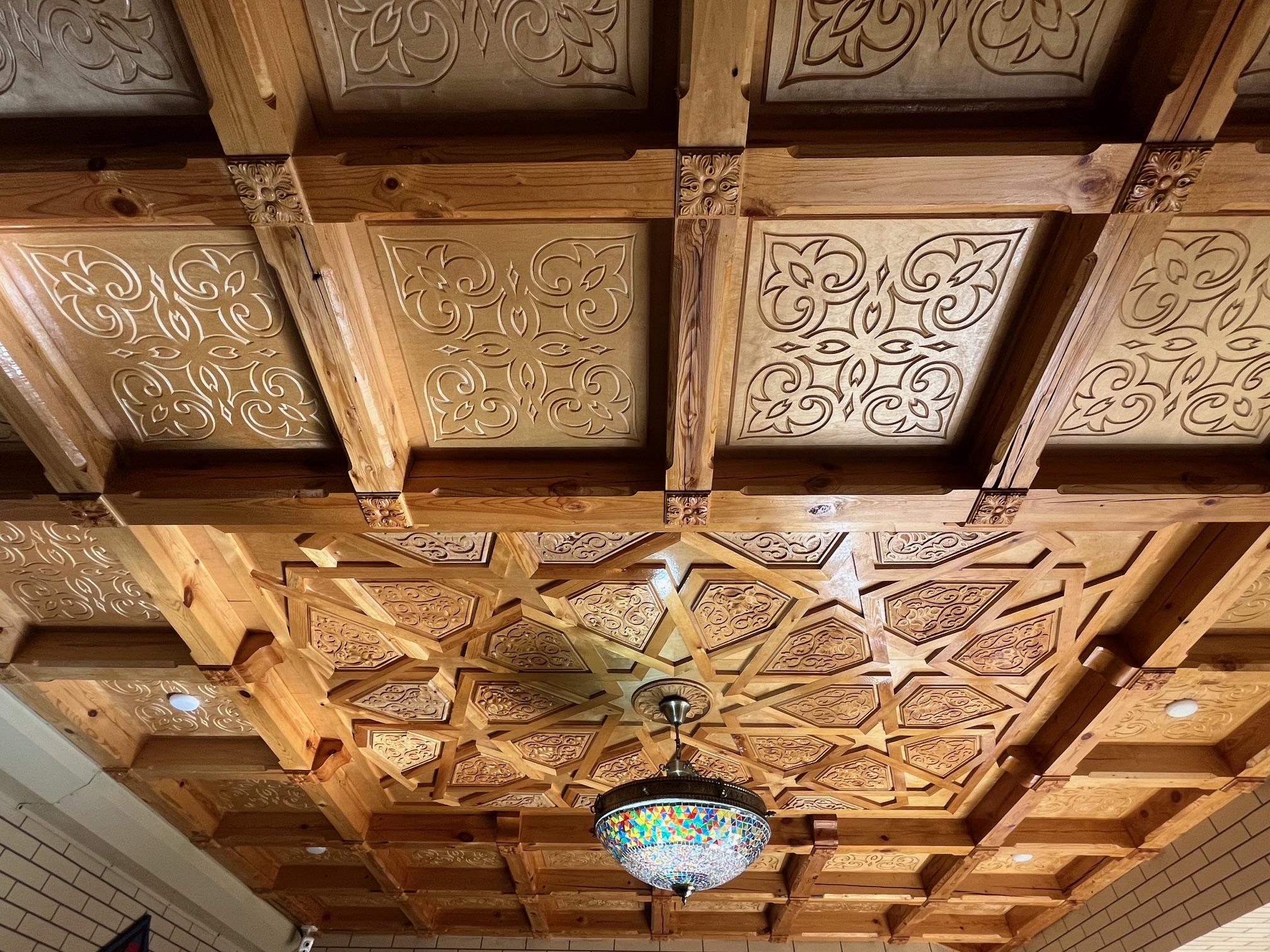

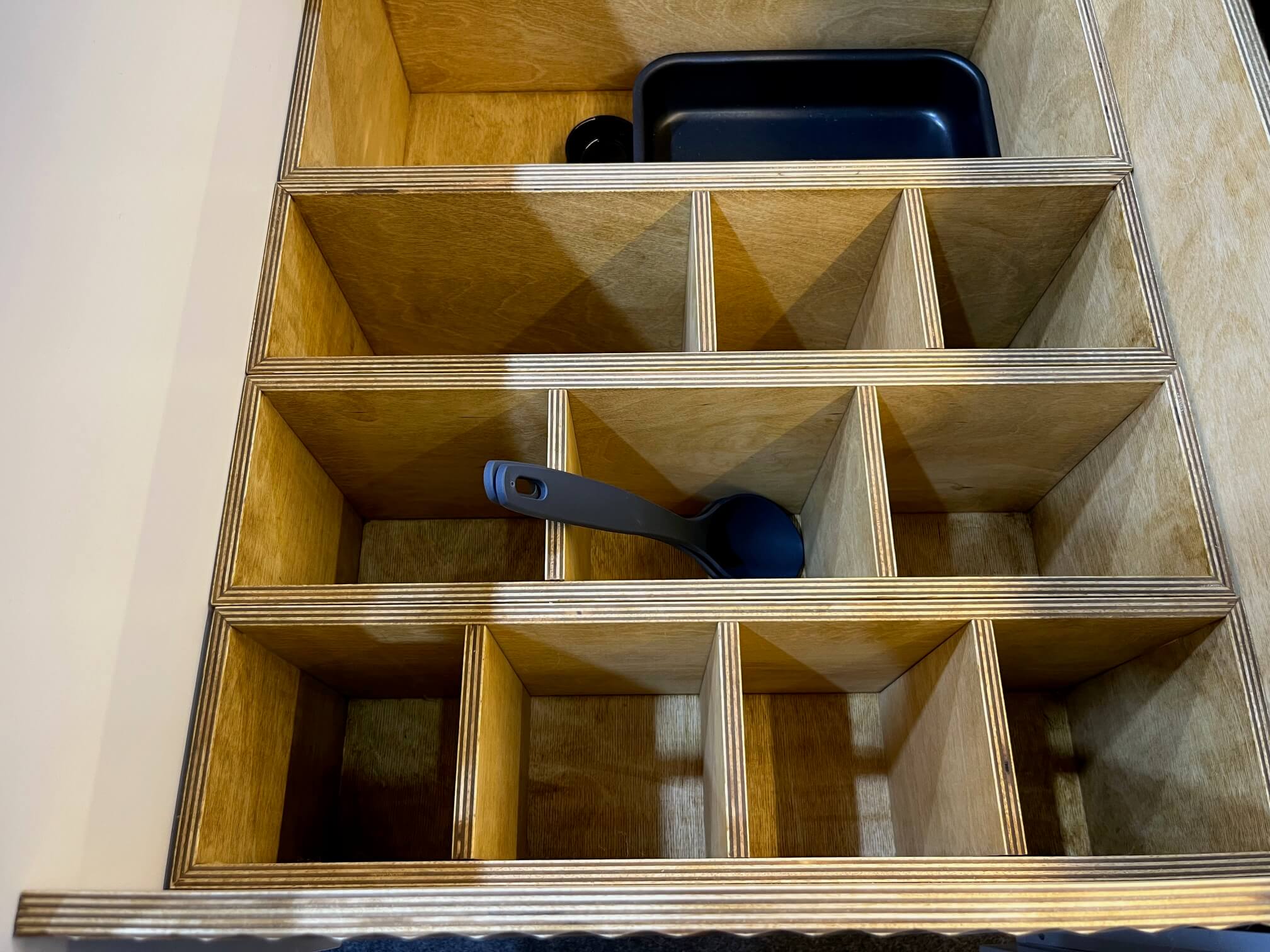

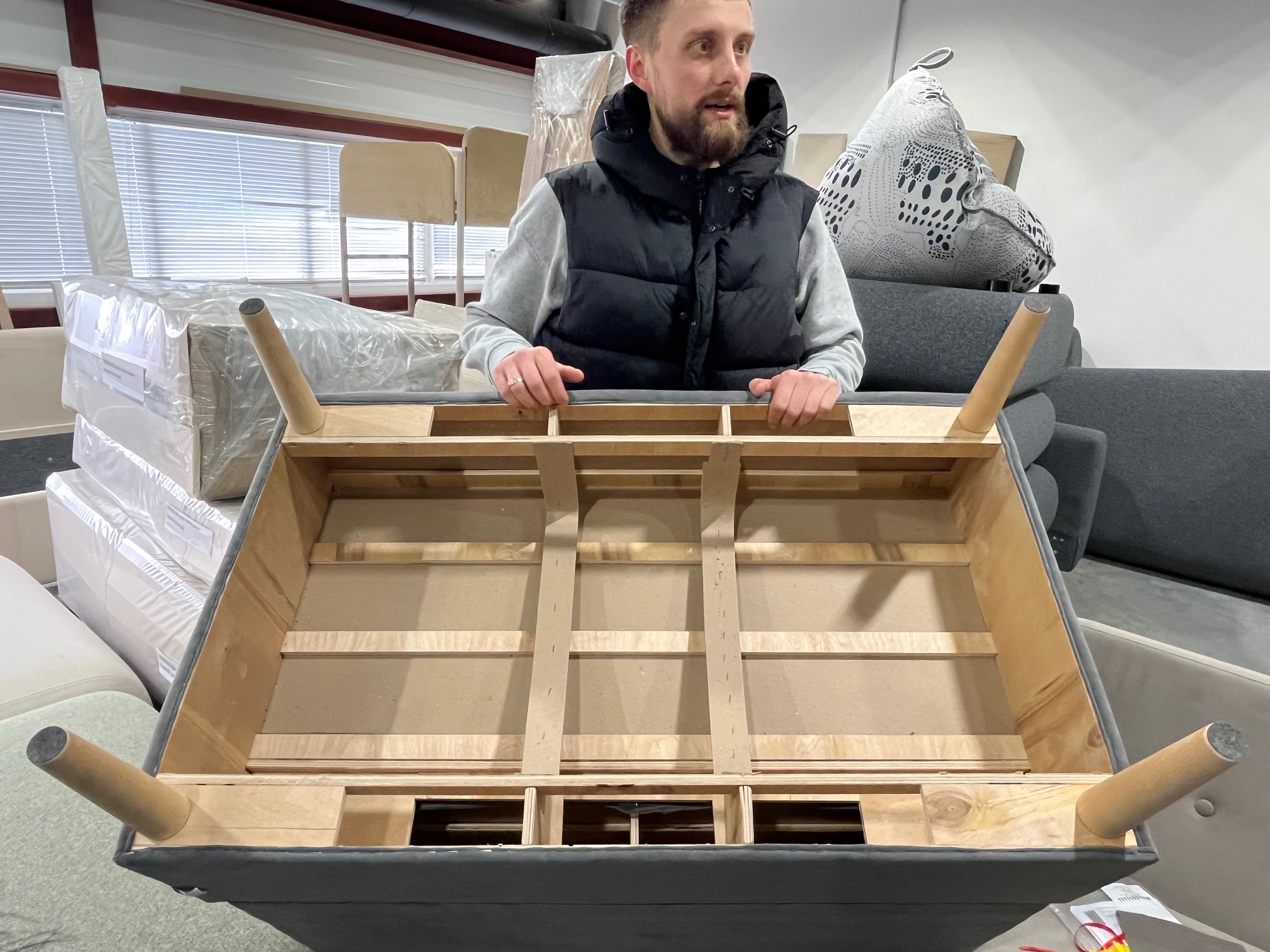

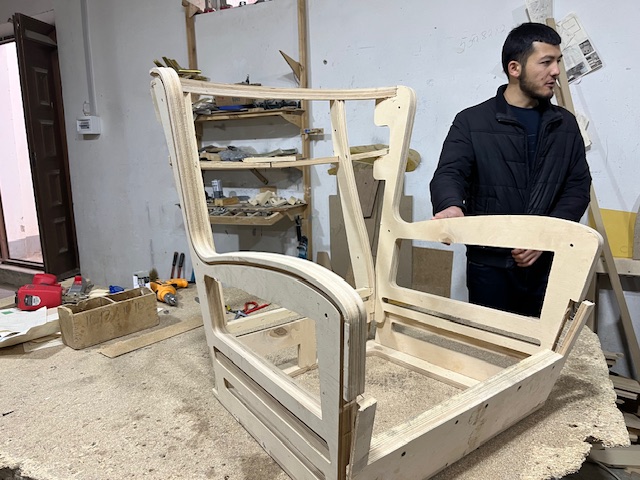

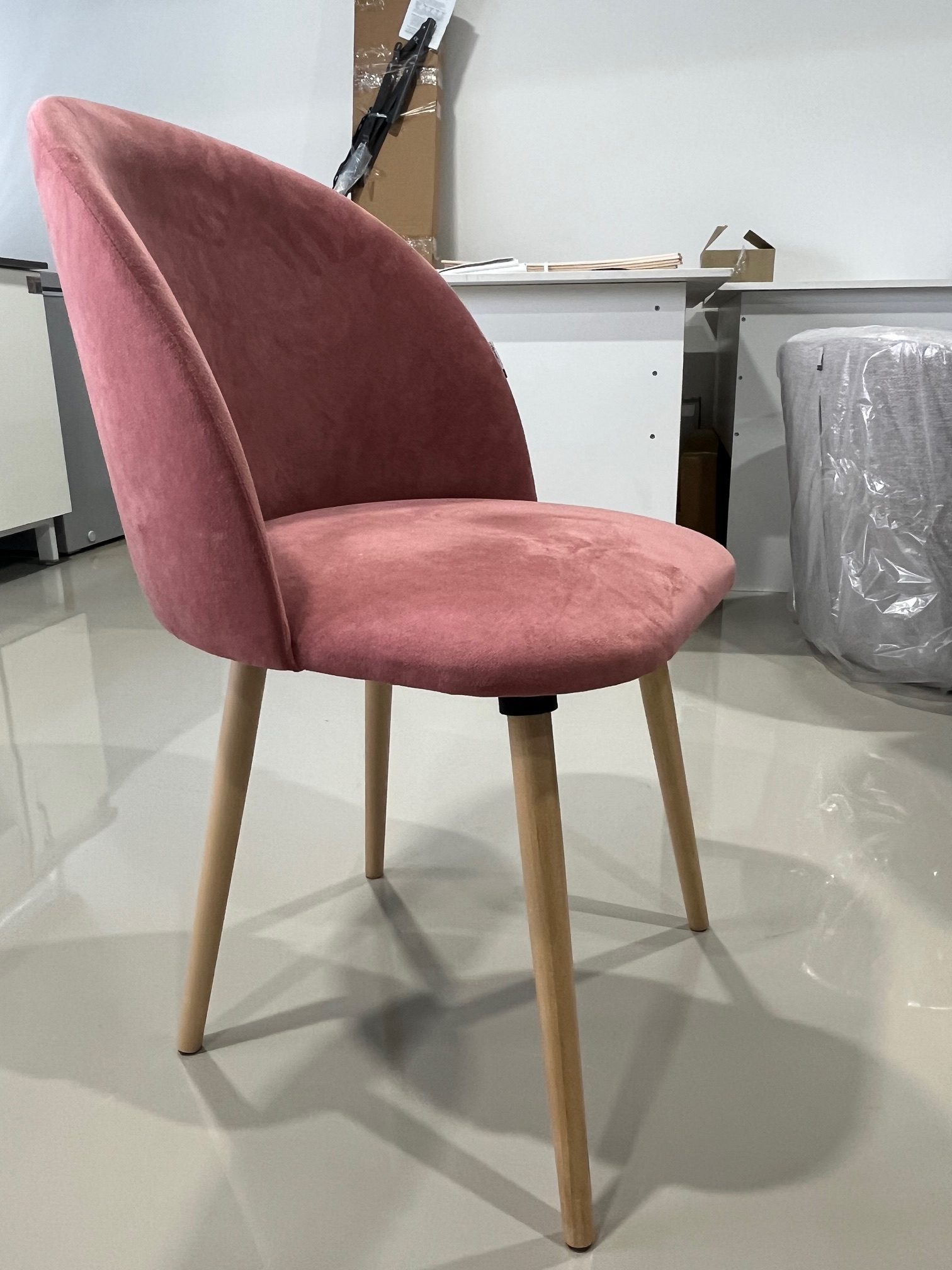

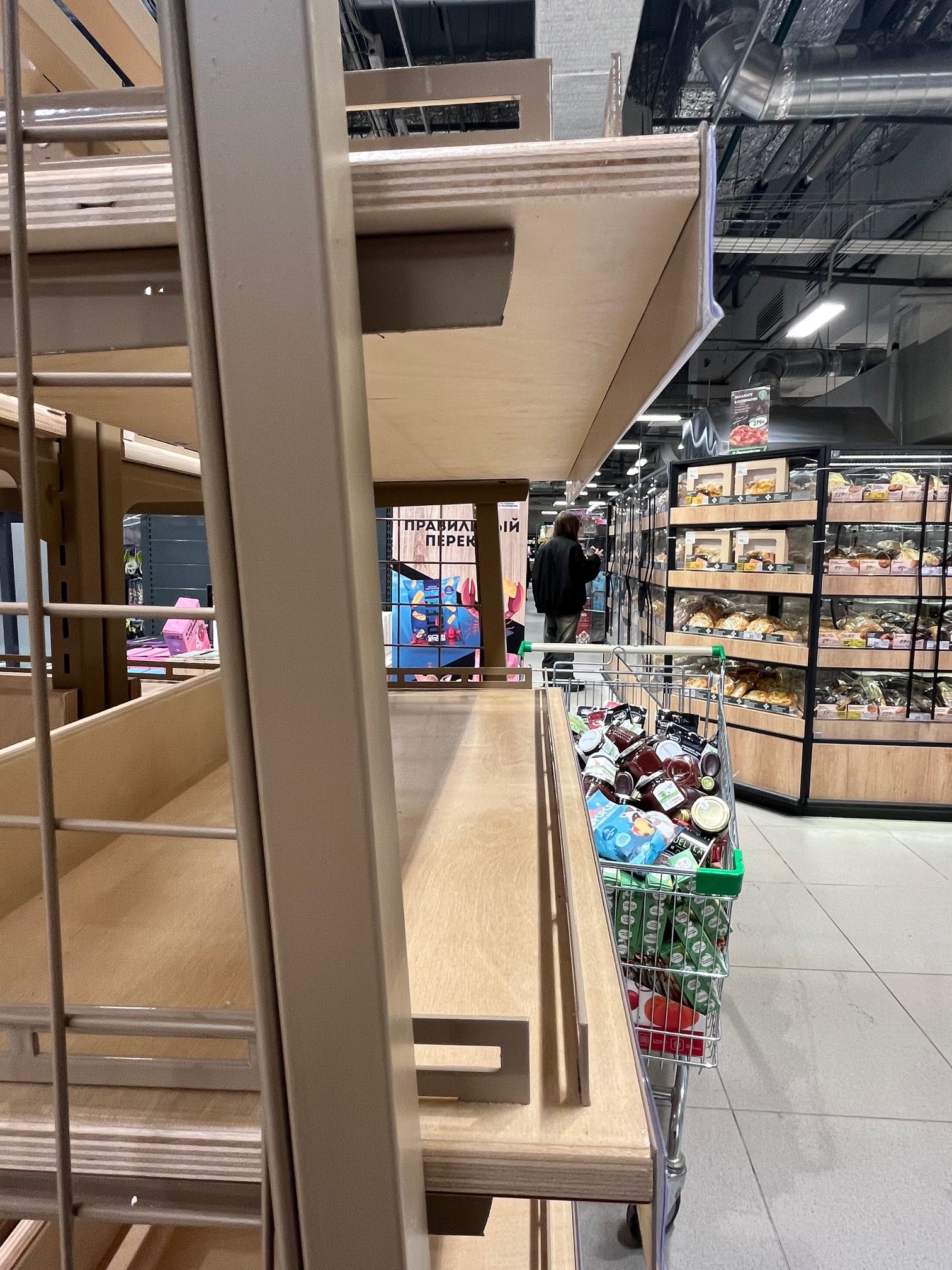

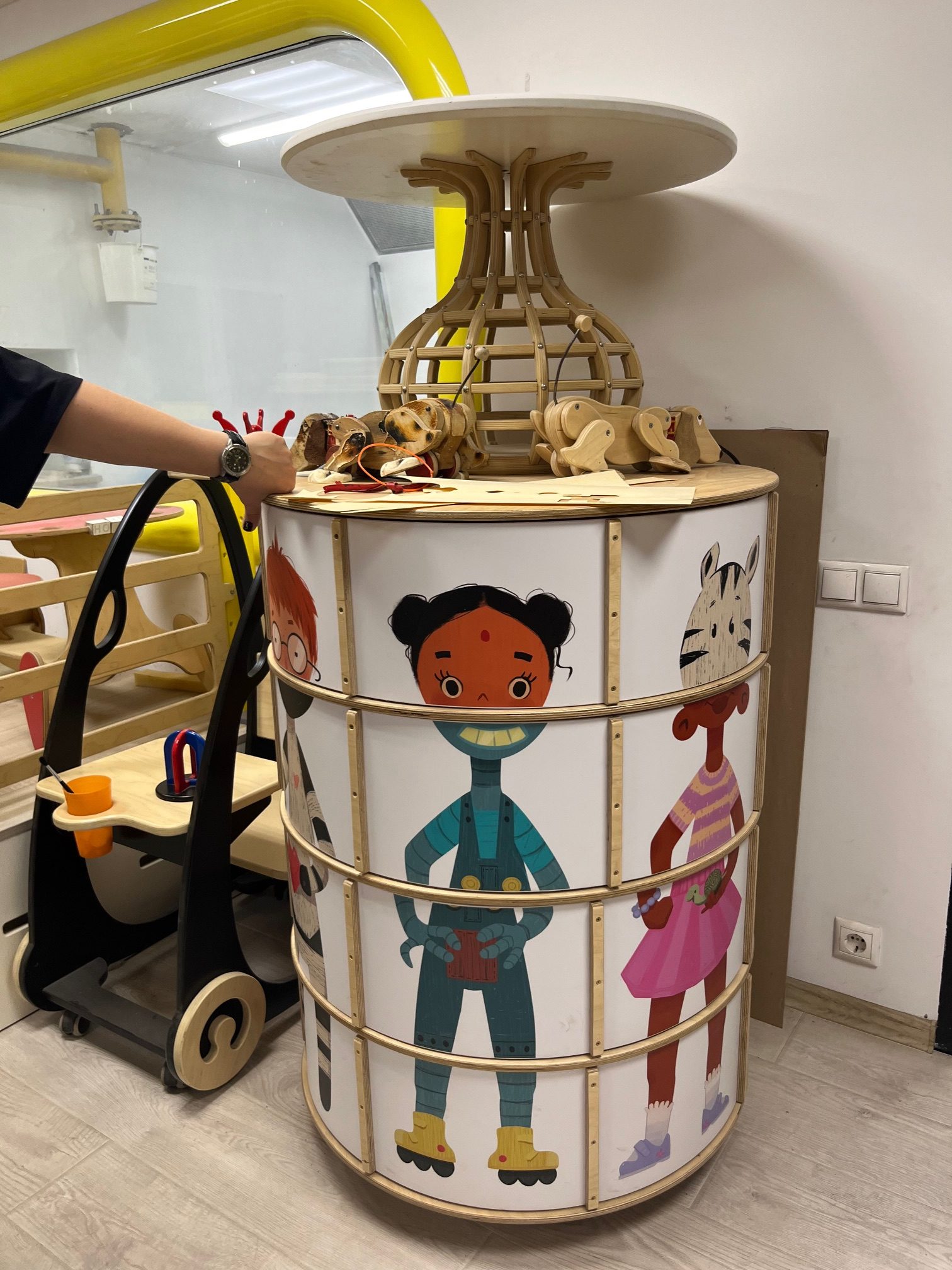

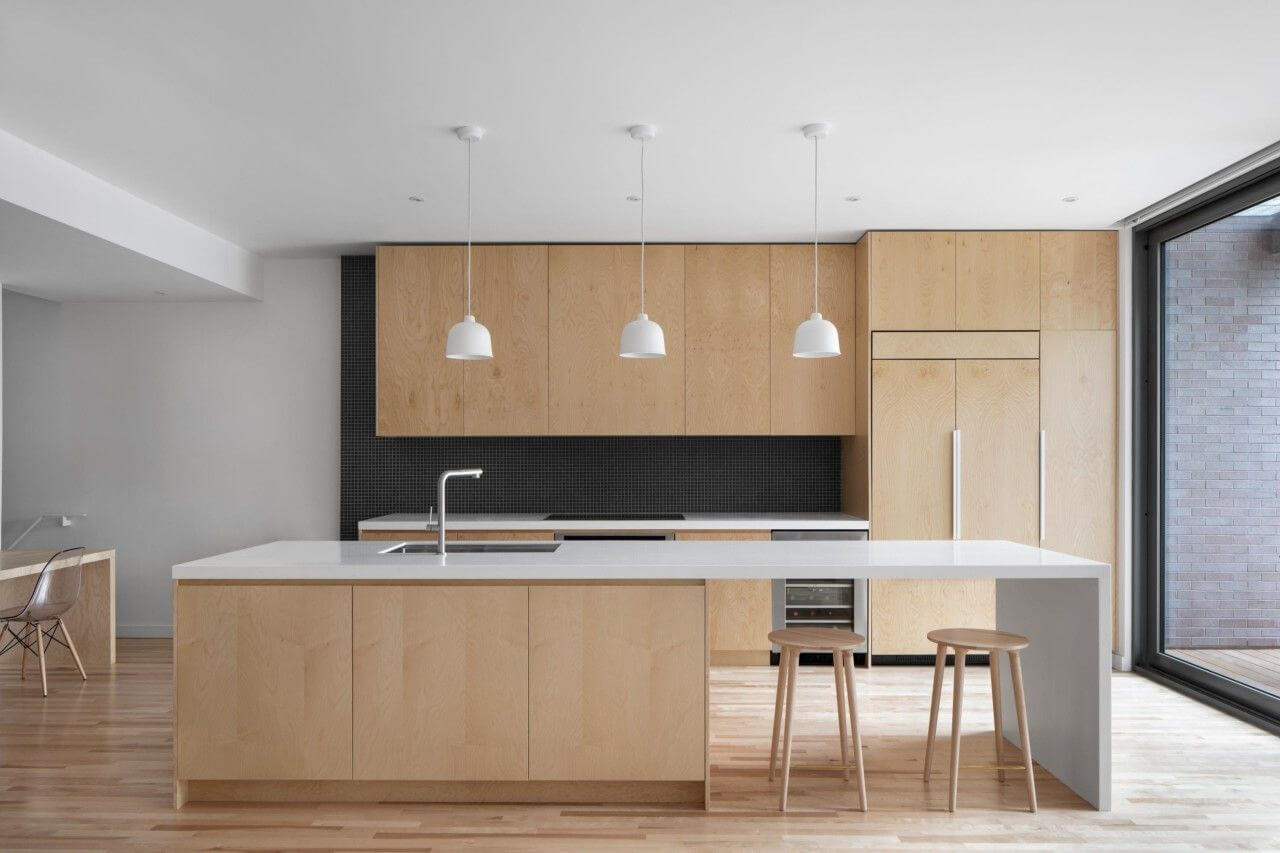

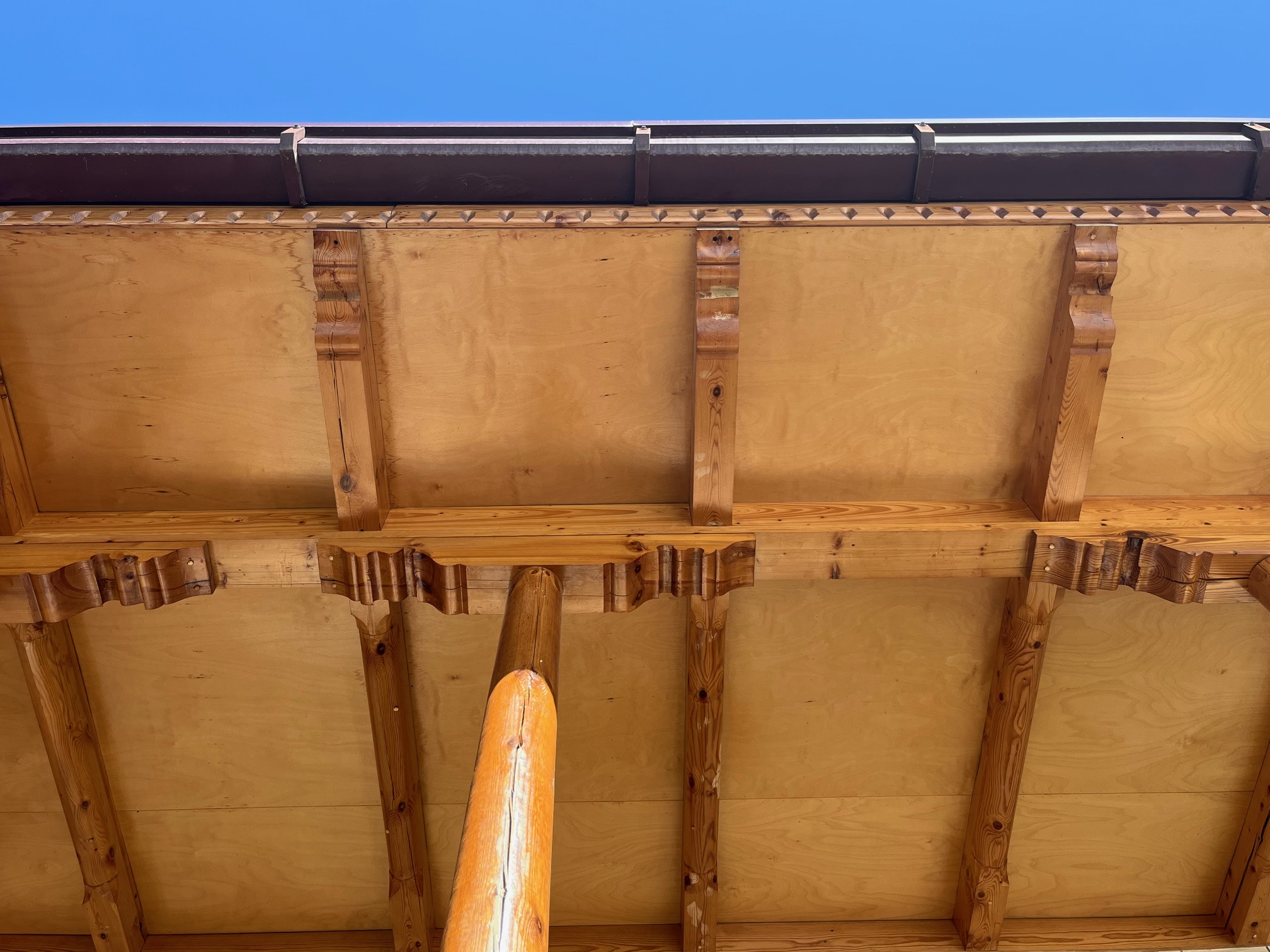

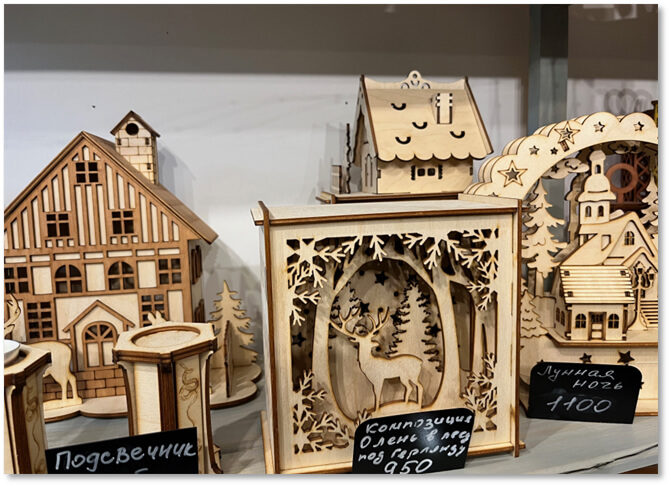

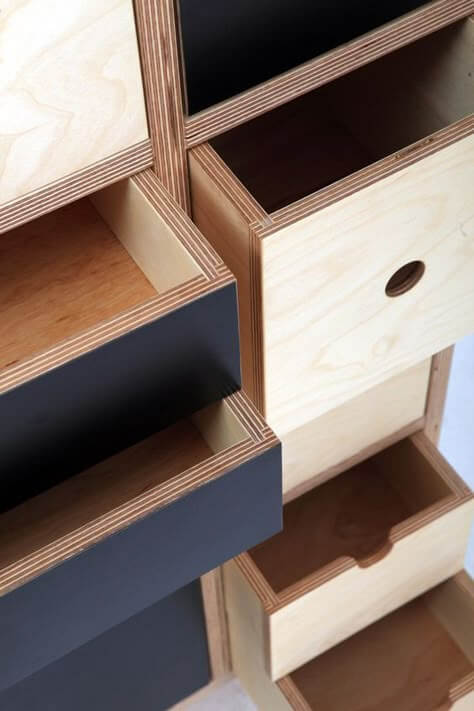

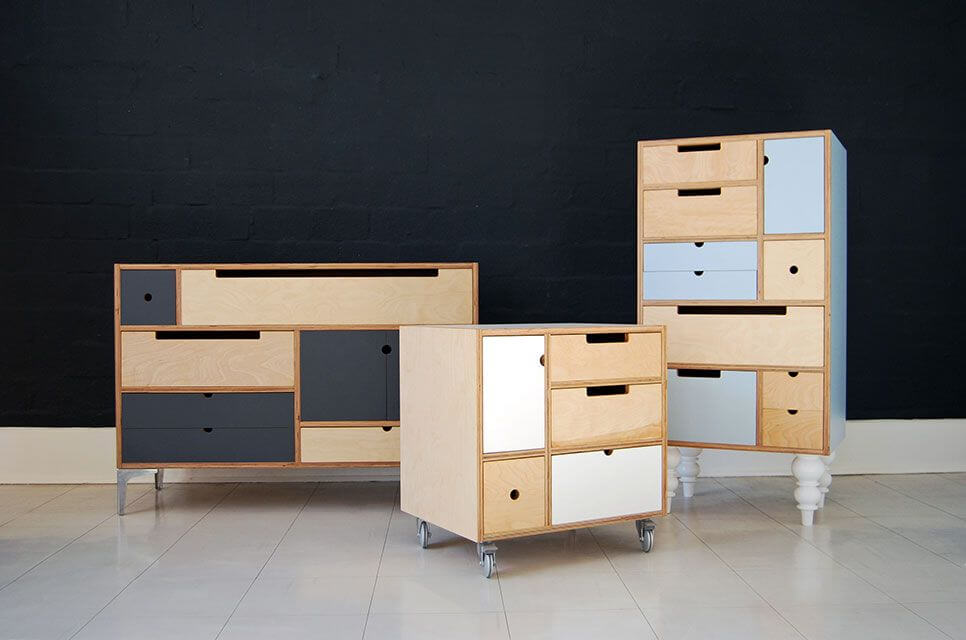

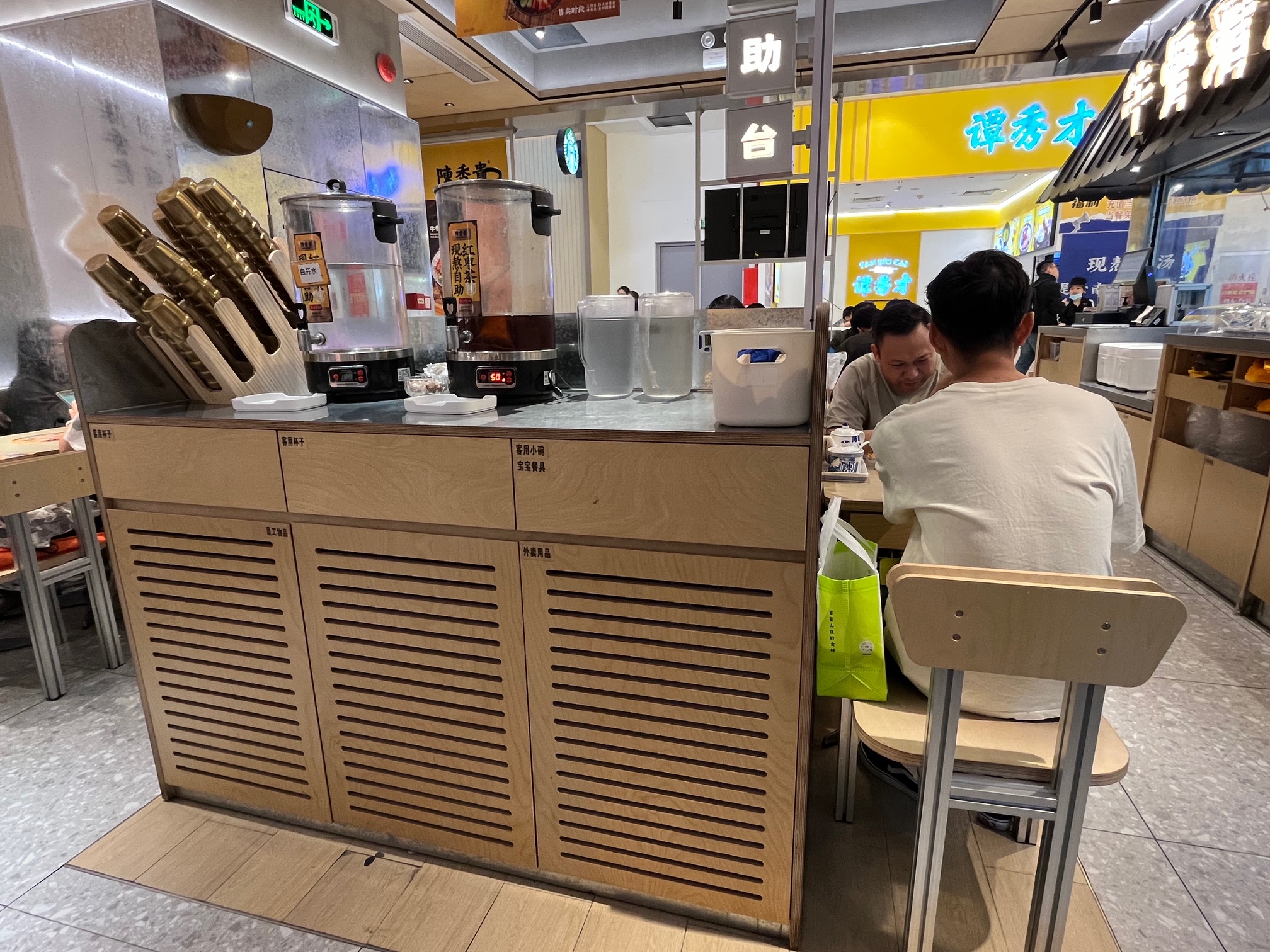

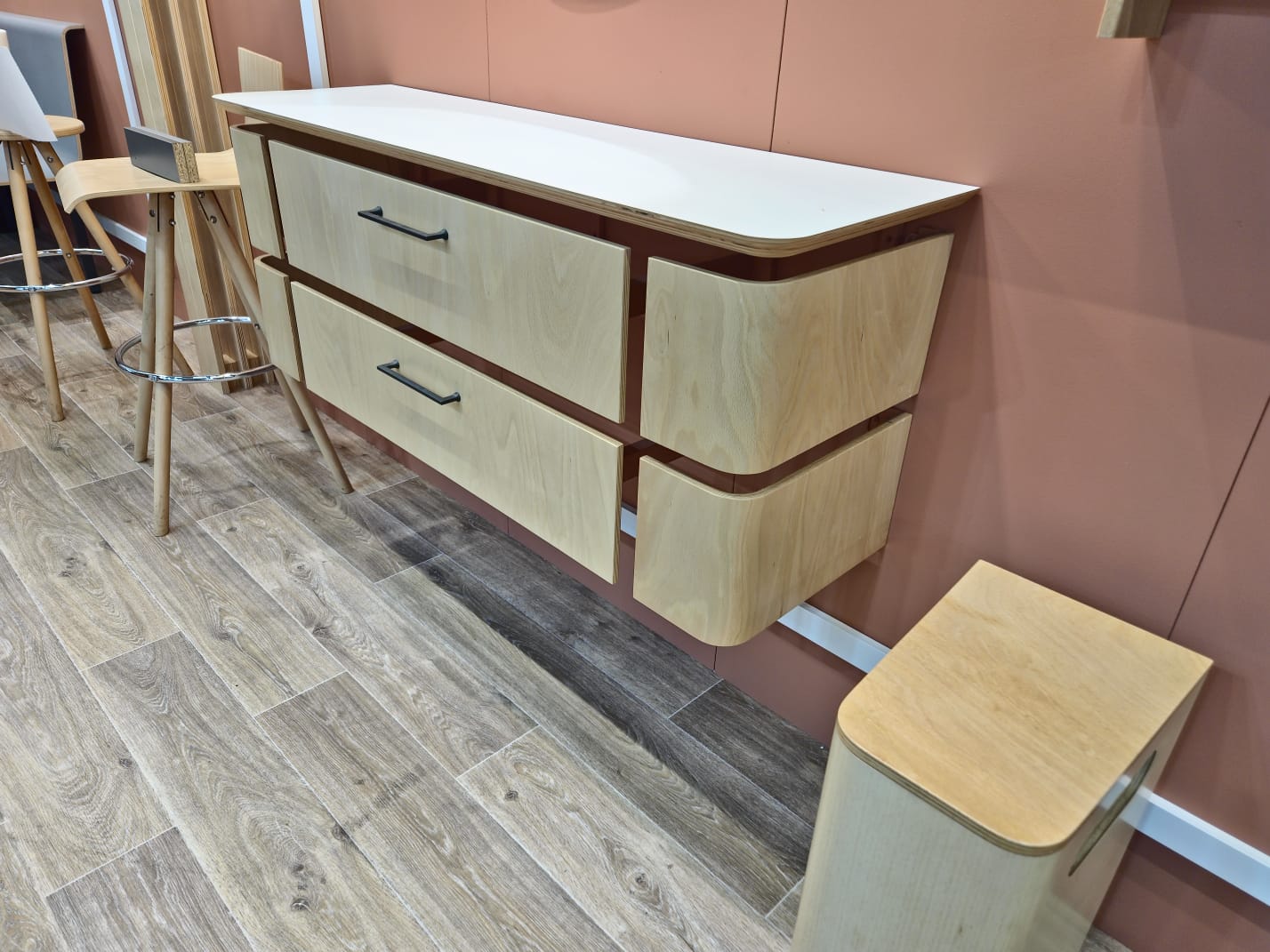

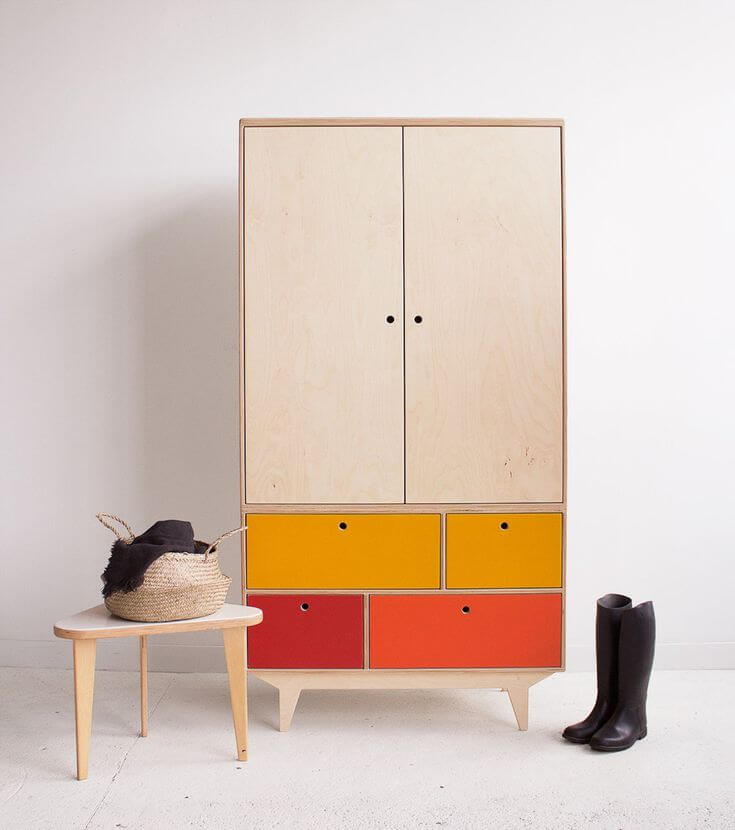

resin (INT-glue), with a wide range of applications in furniture and interior design,

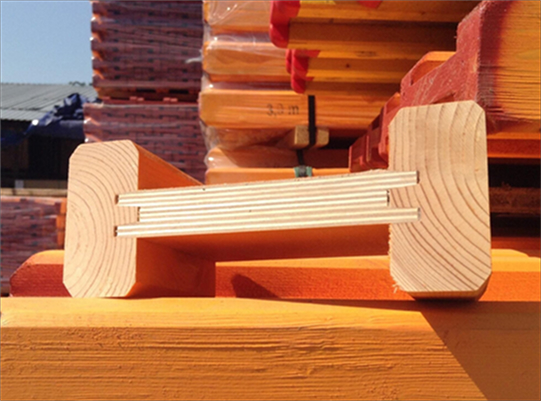

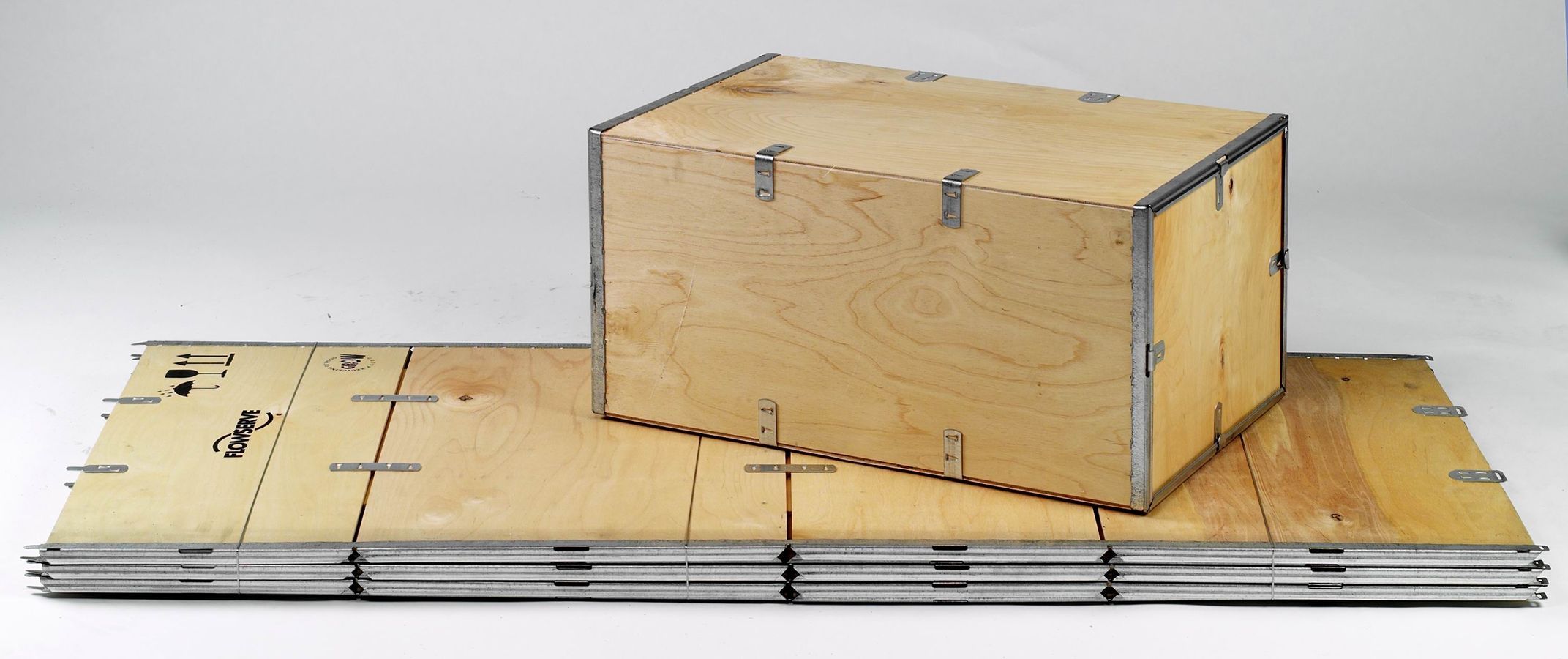

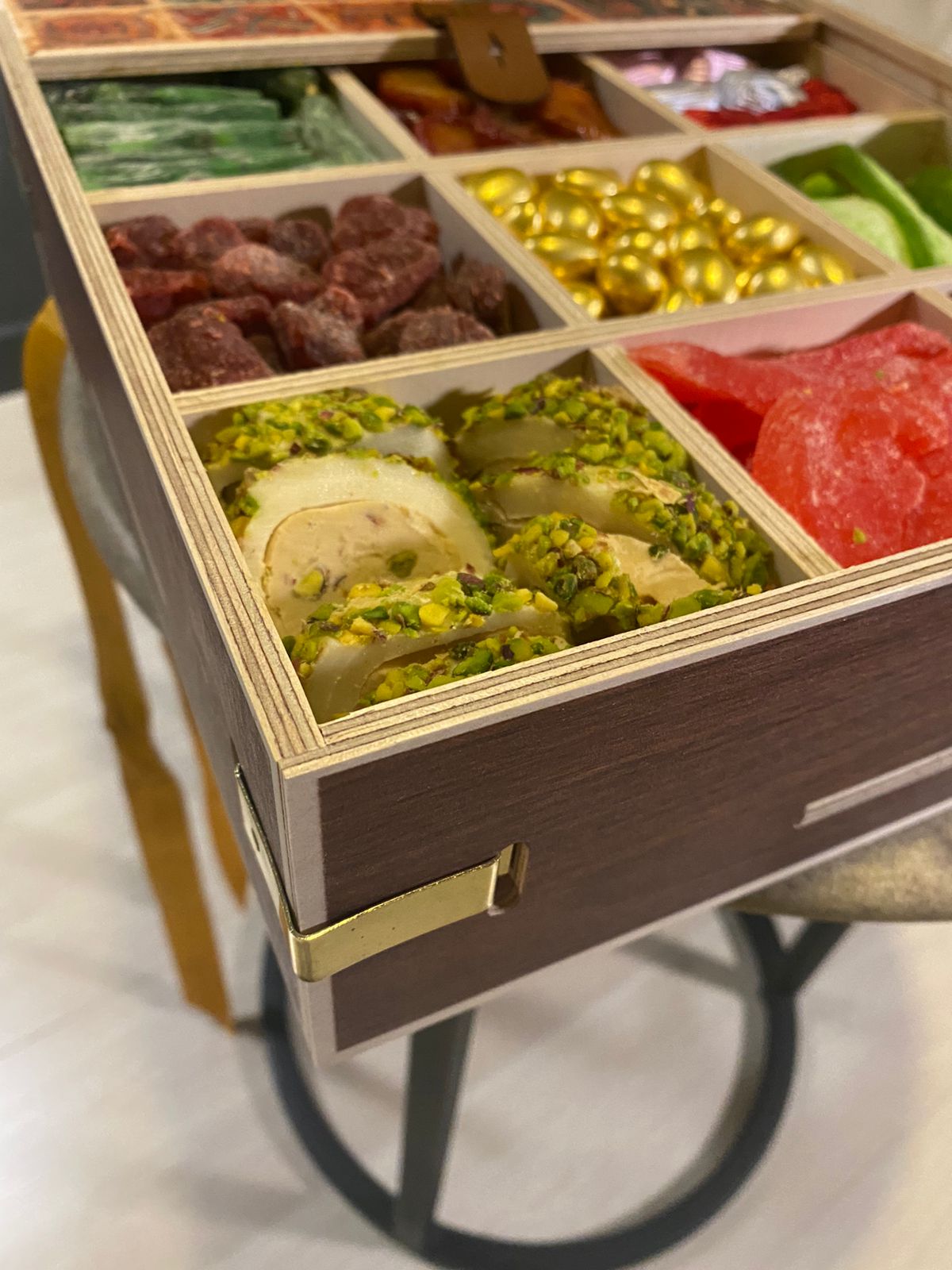

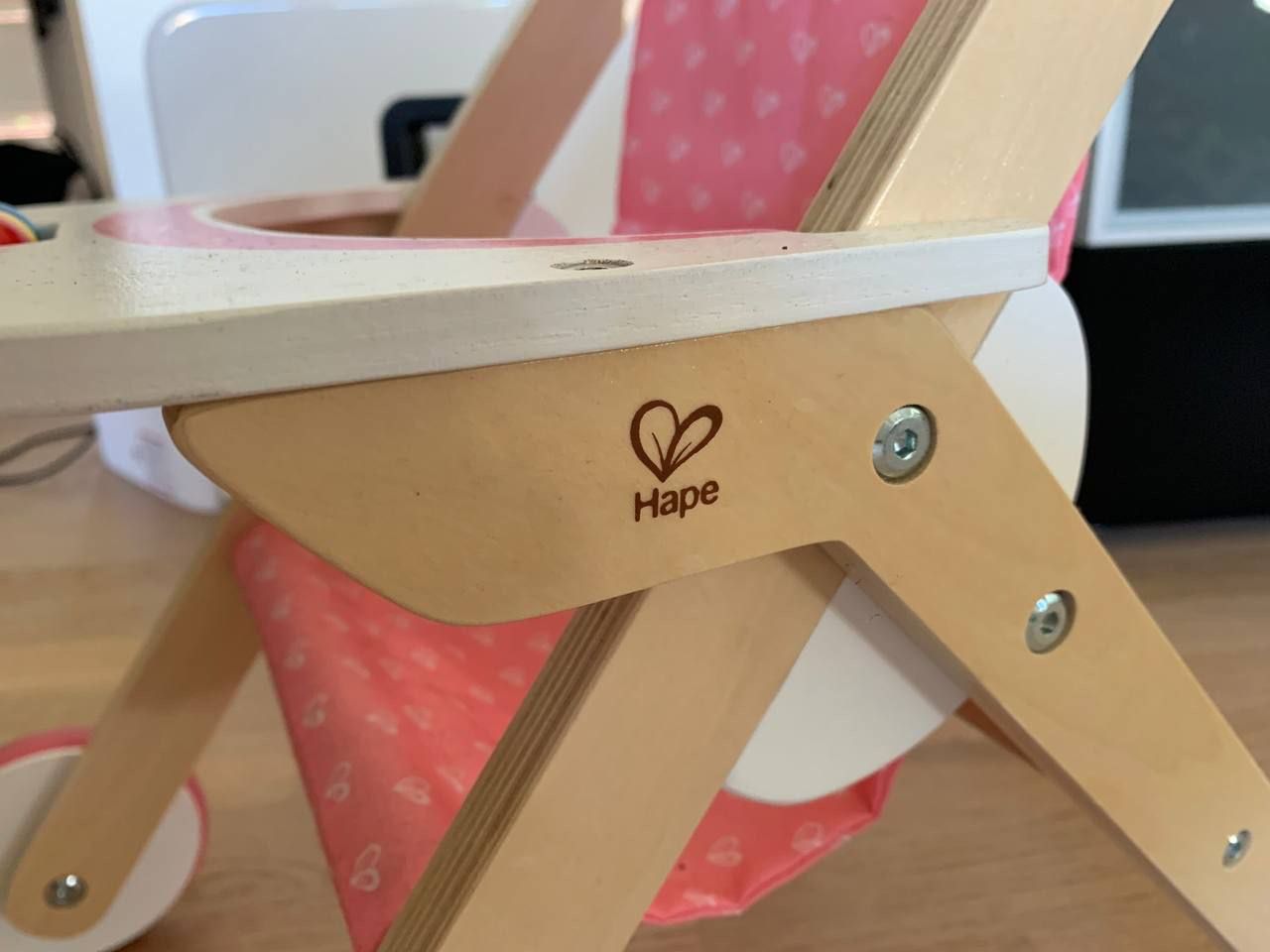

as well as in the production of items requiring strength, lightness, and durability.



Show more

Available in sizes 1525×1525, 1220×1525, and 1270×1525 mm,
in a wide range of thicknesses — from 3 to 30 mm — and grades.
Main grades: B/BB, BB/BB, BB/CP, BB/C, CP/CP, CP/C, C/C.





Product Features

Icon_001
High strength and durability
Icon_02
Reliable moisture resistance
Icon_11

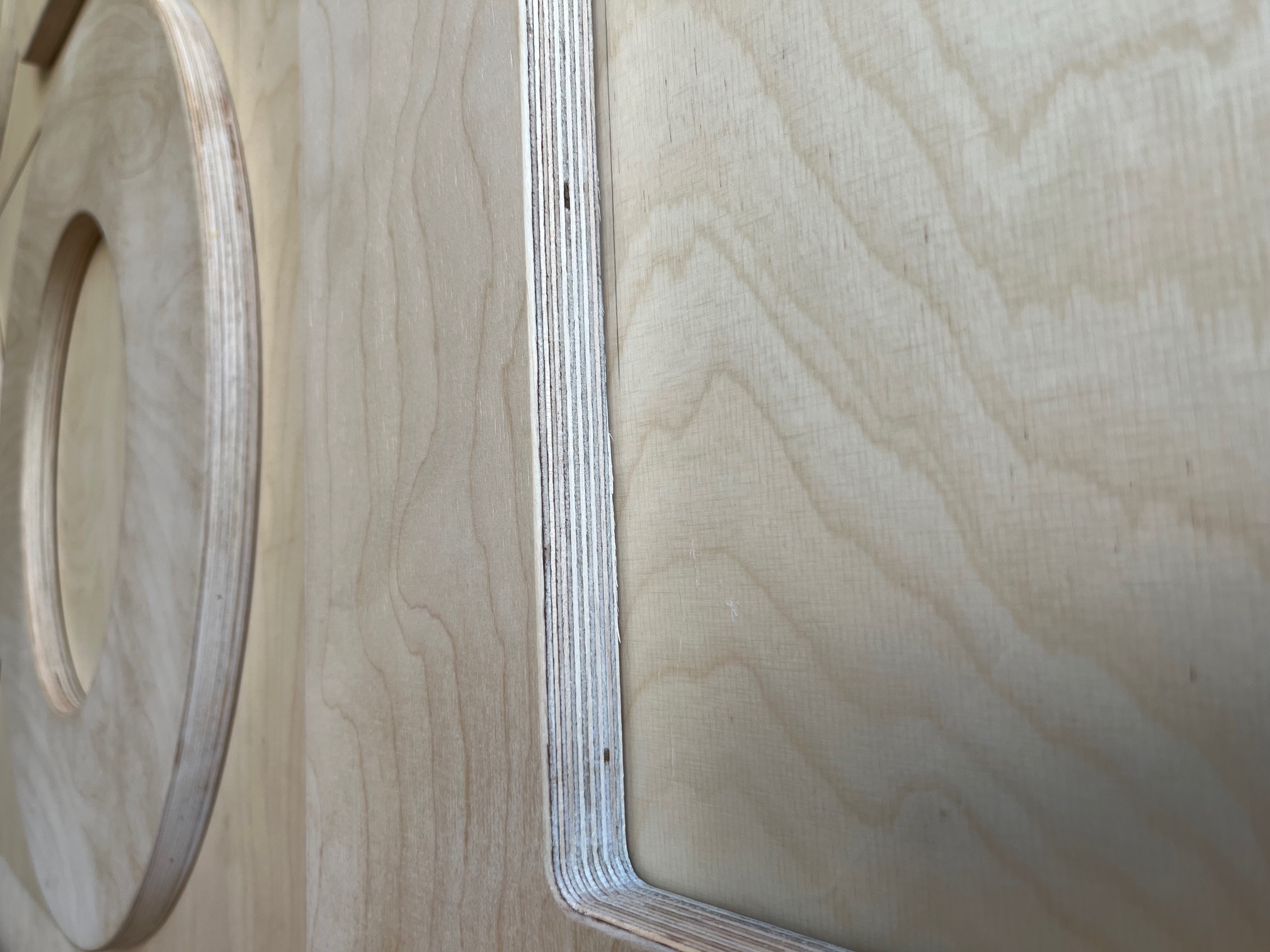

Elegant natural wood texture
Icon_05
Resistance to temperature fluctuations − from -40 to +50 °С

Grades

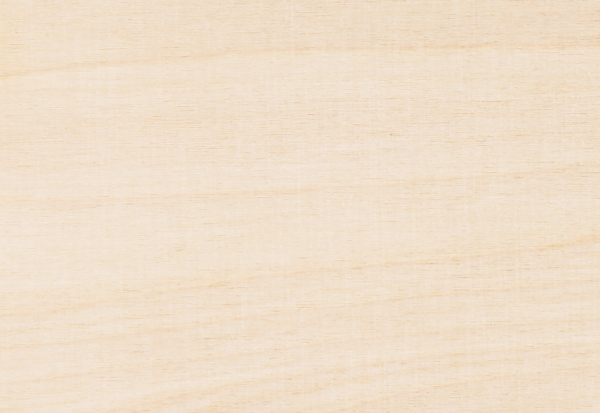

B-I
Grade B (Ⅰ)

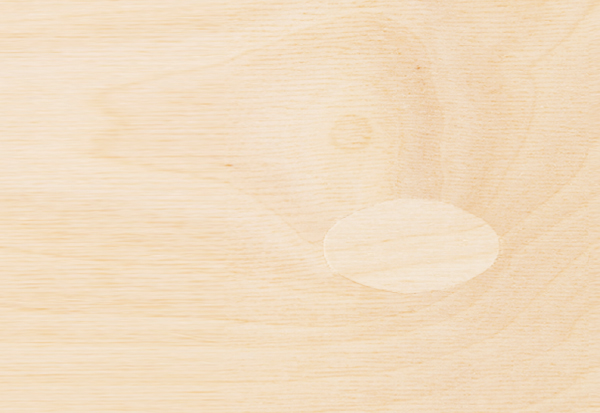

S-I
Grade S (Ⅰ)

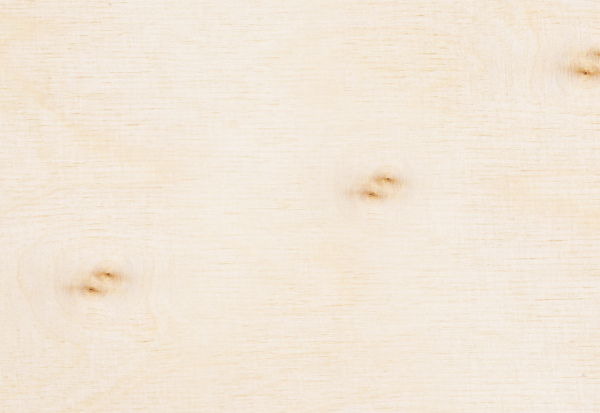

ВВ-II
Grade BB (Ⅱ)
СP-III
Grade CP (Ⅲ)

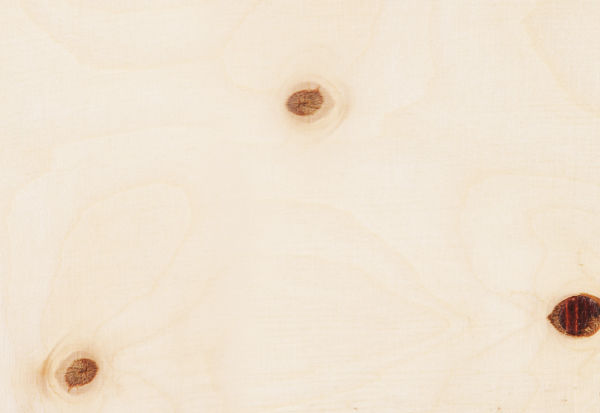

C-IV
Grade С (Ⅳ)

Characteristics

TECHNICAL CHARACTERISTICS
Thickness, mm 3-30
Grades B/BB, BB/BB, BB/CP, BB/C, CP/CP, CP/C, C/C
Emission E0.5
Density, kg/m³ 640-700
Moisture content, %, not more ≤12
SIZES
Size, mm (ft)
1525×1525 (5×5)
1220×1525 (4×5)
1270×1525 (4×5)
THICKNESSES AND NUMBER OF PLIES
Thickness mm Number of plies Tolerances on nominal thickness, mm
3 3 +/-0,3
4 3 +/-0,3
5 4, 5 +/-0,4
6 5 +/-0,4
7 5, 7 +/-0,4
8 6, 7 +/-0,4
9 7, 9 +/-0,4
10 7, 9 +/-0,5
12 9, 11 +/-0,5
15 11, 13 +/-0,7
18 13, 15, 17 +/-0,7
21 15, 19 +1,4/-0,9
24 17, 21 +1,5/-1,0
25 17, 21 +1,5/-1,0
27 19, 23, 25 +1,6/-1,1
28 19, 25 +1,6/-1,1
30 21, 27 +1,7/-1,2



PHYSICAL AND MECHANICAL PROPERTIES

Shear strength of the glue line, MPa, min

1.2

Ultimate bending strength along the grain,

MPa, min



55

Ultimate bending strength across the grain,

MPa, min



15

Modulus of elasticity in bending along the grain,

MPa, min

Modulus of elasticity in bending across the grain,

MPa, min

thickness less than 7 mm

thickness more than 7 mm



7 000





1 000

4 000

Tensile strength along the grain, MPa, min

thickness 3-6 mm



30
