NORDECO Build shuttering plywood with marking grid

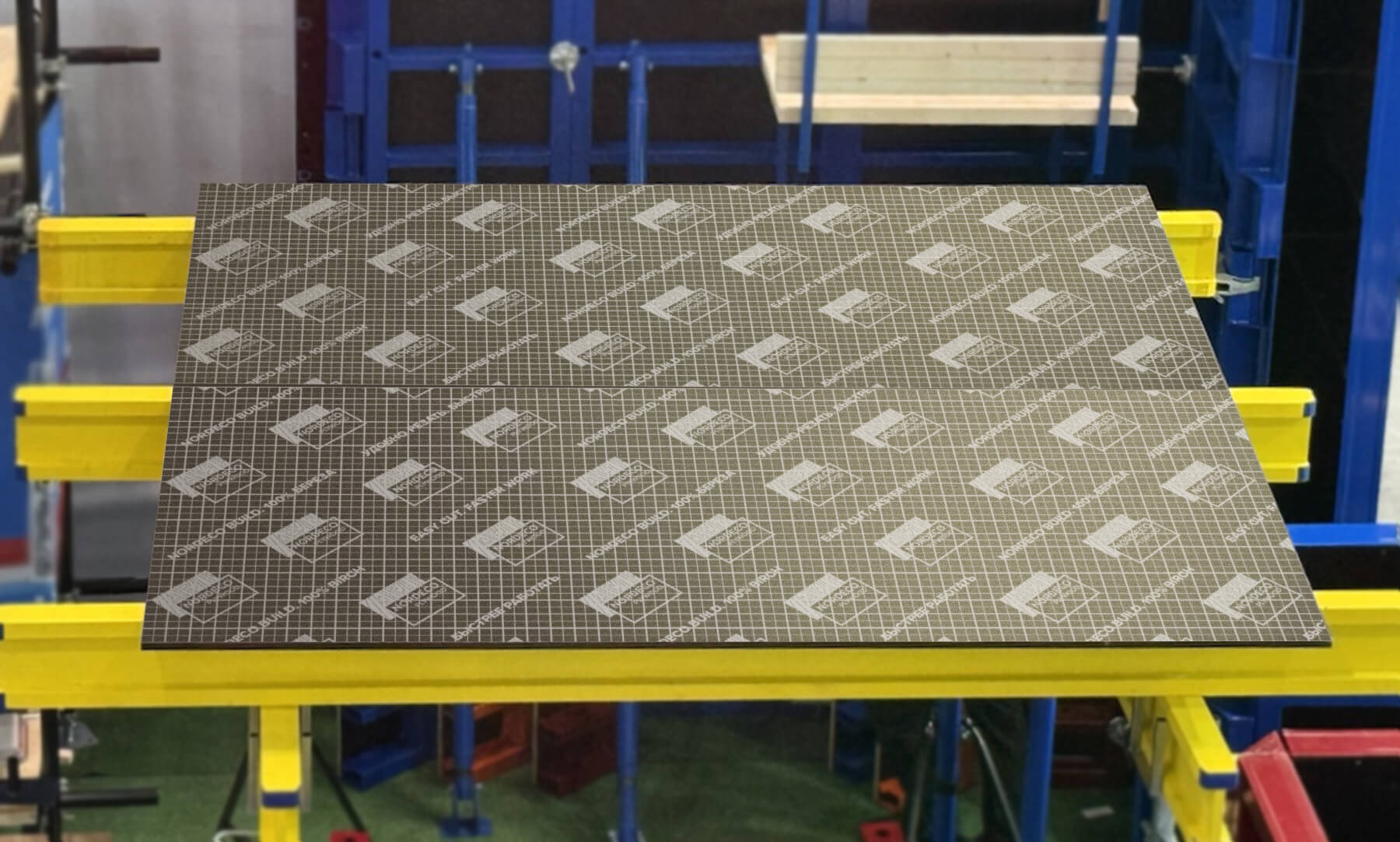

NORDECO Build is a construction plywood made of 100% birch with a marking grid on the surface.  The grid pattern has a pitch of 50 mm and simplifies the cutting of plywood into parts.

The trademark NORDECO Build is registered. Rospatent certificate No. 1179394.

See more

NORDECO Build plywood is available in 2 types: with markings on both sides and on one side – the side without a pattern is used as the front in the finished goods. Dark brown impregnated phenolic paper with densities of 120 and 220 g/m2 is used as a coating. The ends of the plywood are protected with acrylic paint to match the film.

Size: 4x8x4, thicknesses: 18 and 21 mm.

Product features

Icon_01-1
01 High wear resistance
Icon_Влагостойкий_клей 1 (1)
02 High moisture resistance
Icon_11
03 Marking grid for easy cut
Icon_04-1
04 Resistance to aggressive environments, including chemicals
Icon_05-1
05 Resistance to temperature fluctuations − from -40 to +50 °С

Сорта

Characteristics

Technical characteristics

Thickness, mm

18, 21*

Surface type

Smooth/smooth (F/F)

Film density, g/m²

120, 220

Formaldehyde emission class

E0.5

Wear resistance of the film, cycles in Taber abrasion test

≥400

Water resistance

High

Plywood density, kg/m3

640-700

Moisture content, %

5-12

Edge sealing

Аcryl-based water resistant paint, dark brown

Sizes

Standard sizes, mm (ft)

1220х2440; 1250х2500 (4х8)

2440х1220; 2500х1250(8х4)

Thicknesses

Thickness

mm

Number of plies

Tolerances

on nominal thickness,

mm

Tolerance

on thickness
 within one panel, mm

18

13

+0,7/-0,9

0,6

21

15

+0,8/-1,0

Physical and mechanical properties

Index

18 mm

21 mm

Static bending strength

GOST, MPa, not less

along the grain

25

25

across the grain

not standardized

not standardized

Static bending strength actual, MPa, not less

along the grain

74

69

across the grain

54

50

Modulus of elasticity

in static bending GOST,

MPa, not less

along the grain

7 000

7 000

across the grain

not standardized

not standardized

Modulus of elasticity

in static bending actual,

MPa, not less

along the grain

9 600

8 500

across the grain

6 400

6 500
