NORDECO Truck transportation plywood

Endures more, Lasts longer
For critical applications where safe and reliable floor operation is required

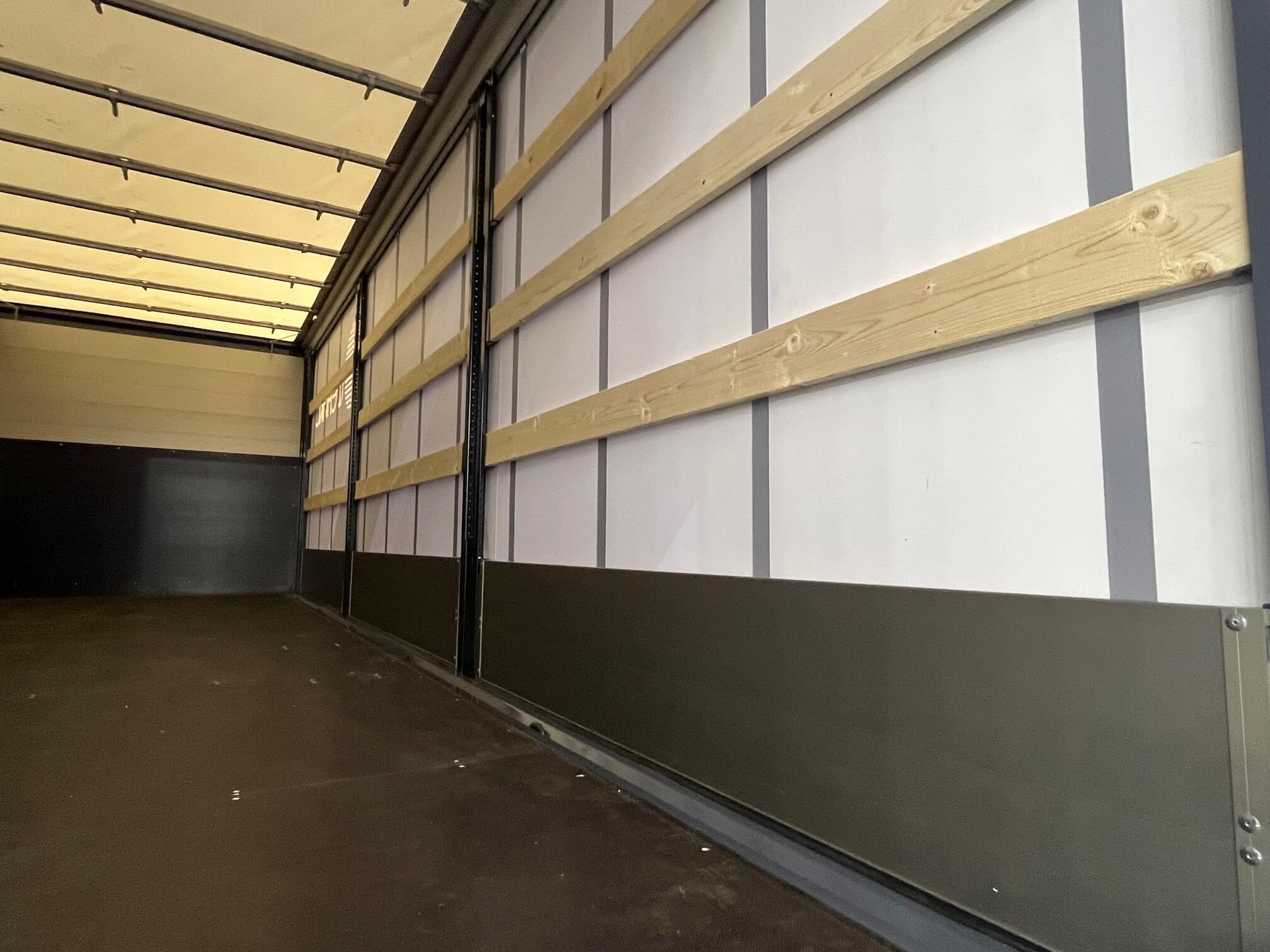

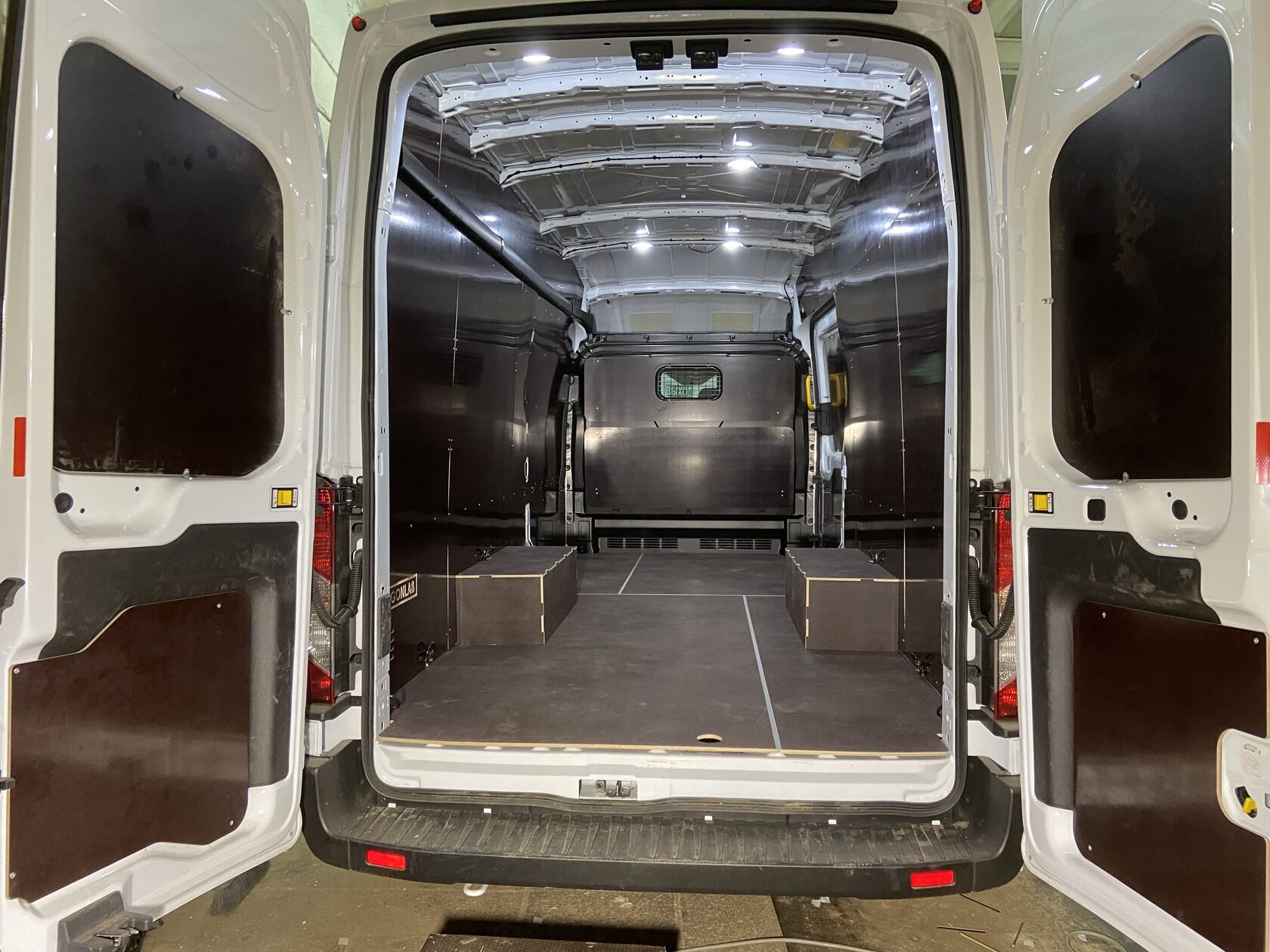

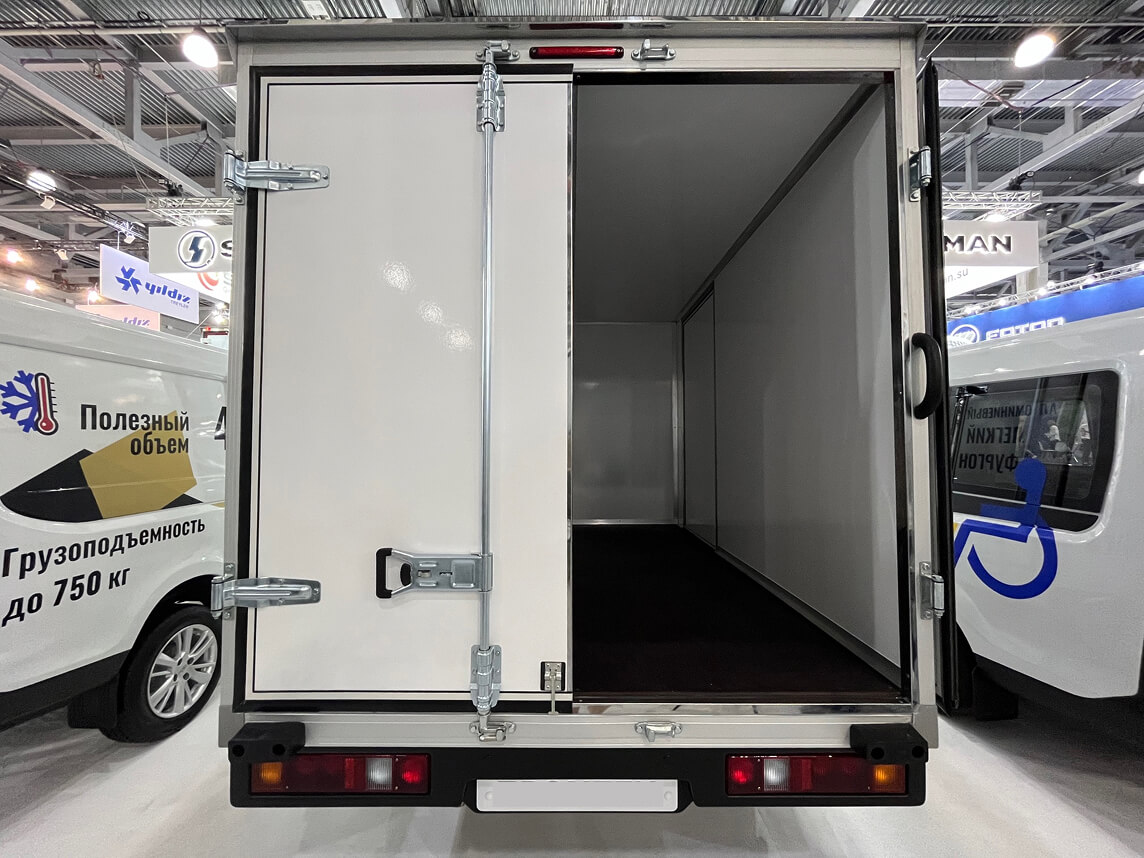

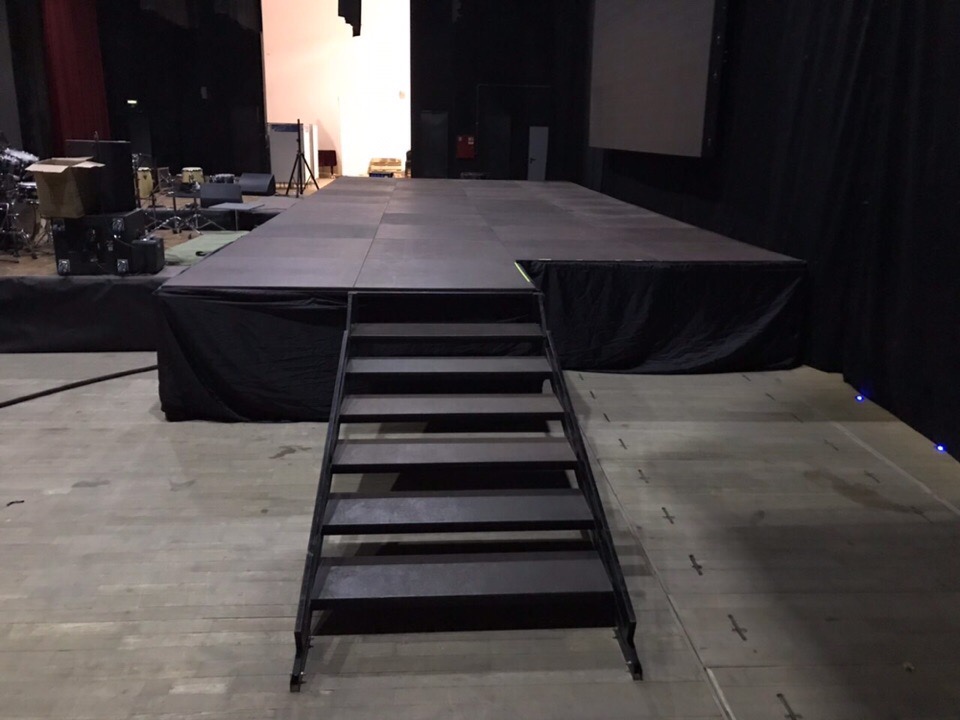

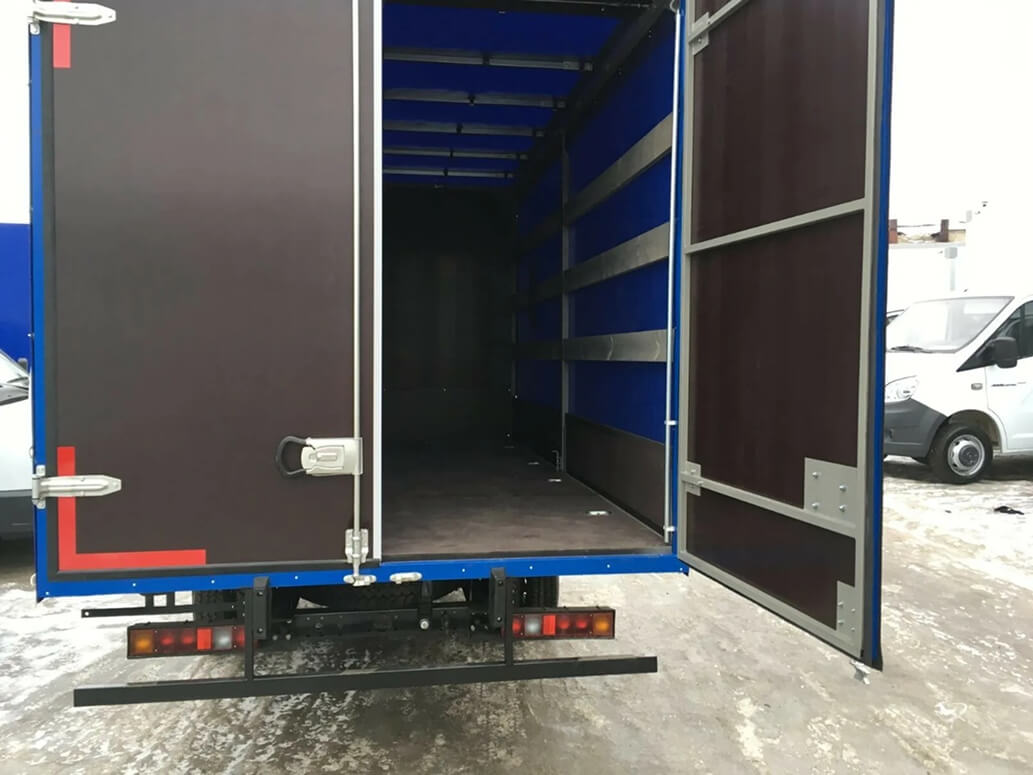

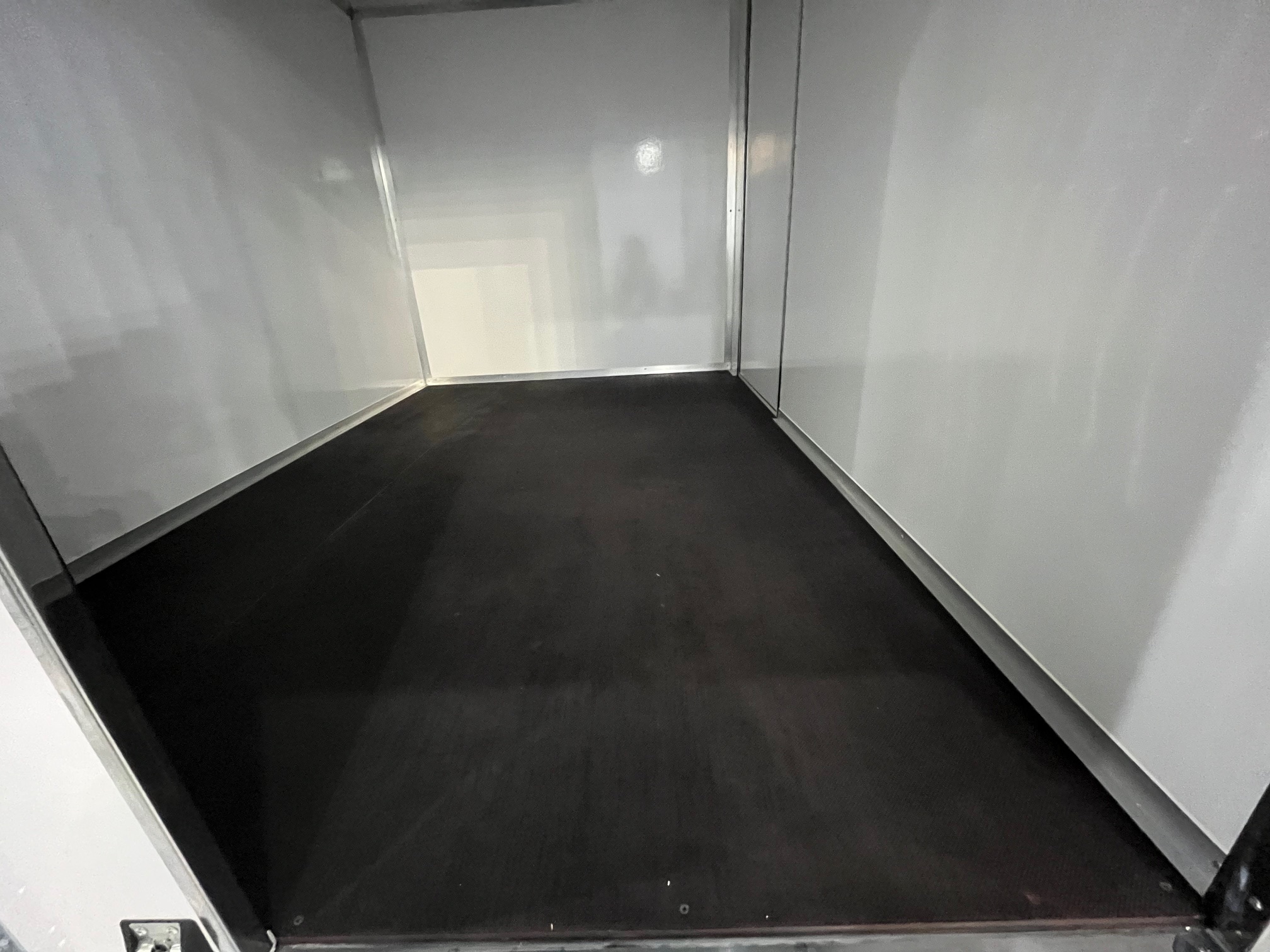

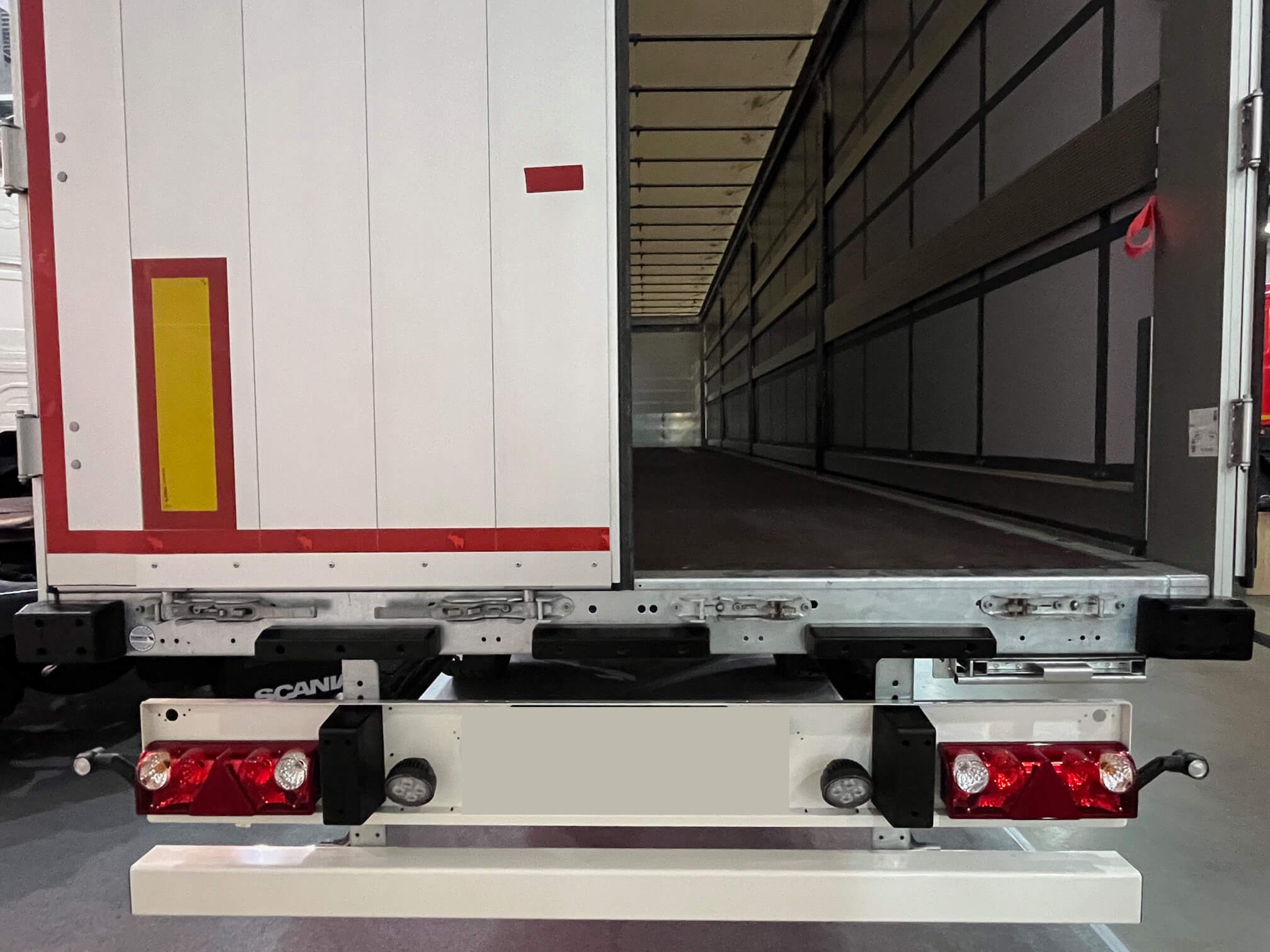

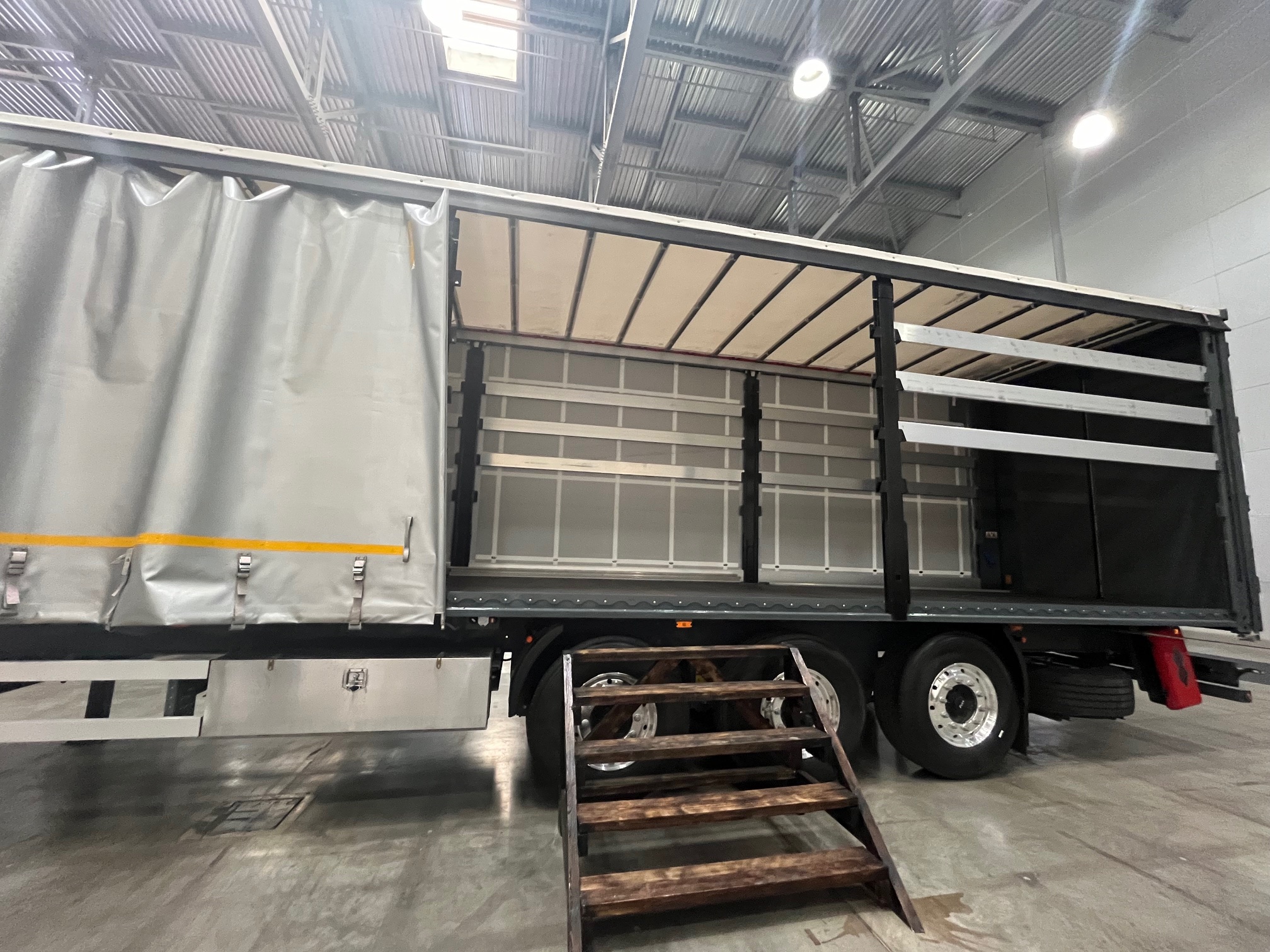

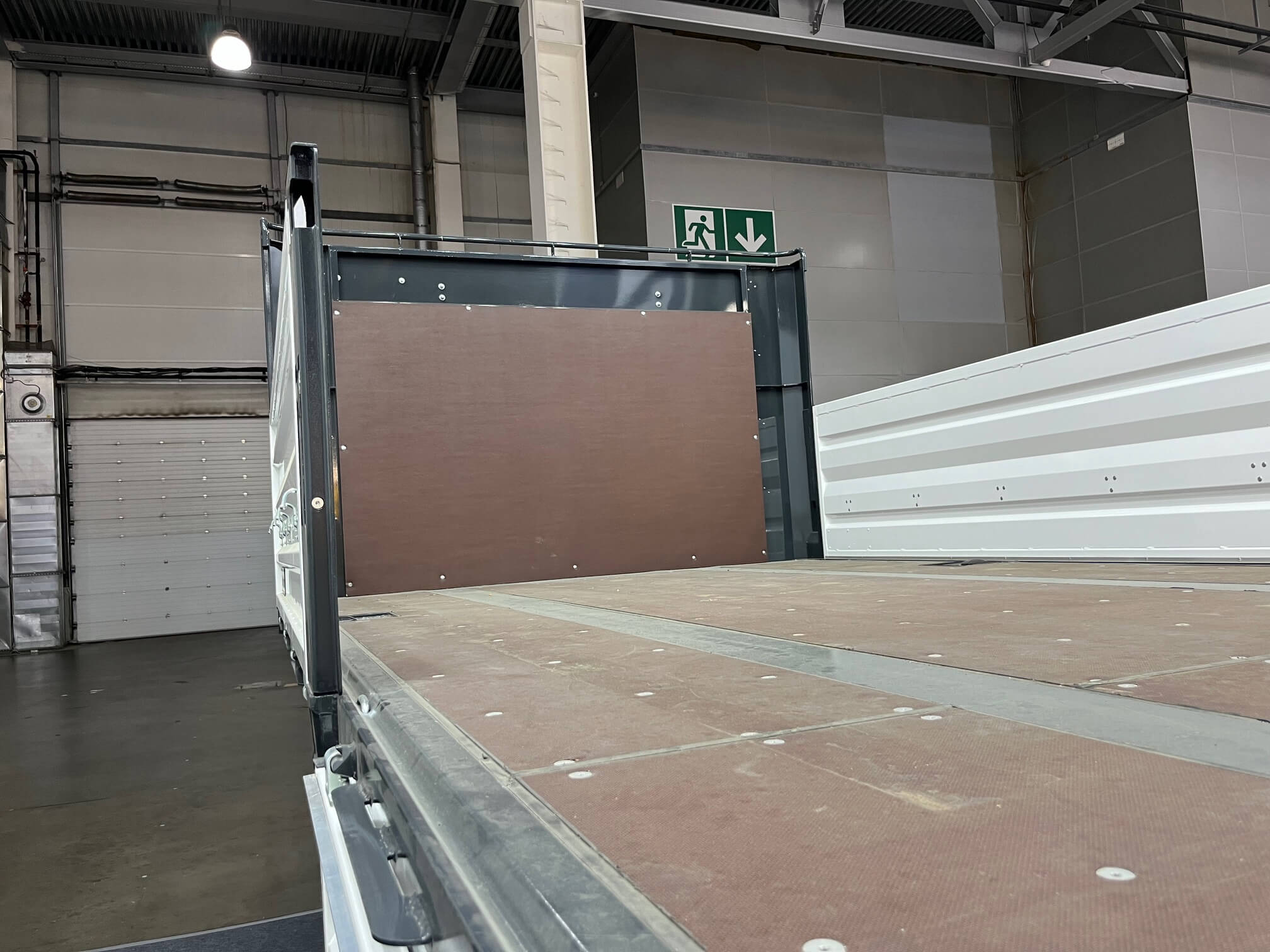

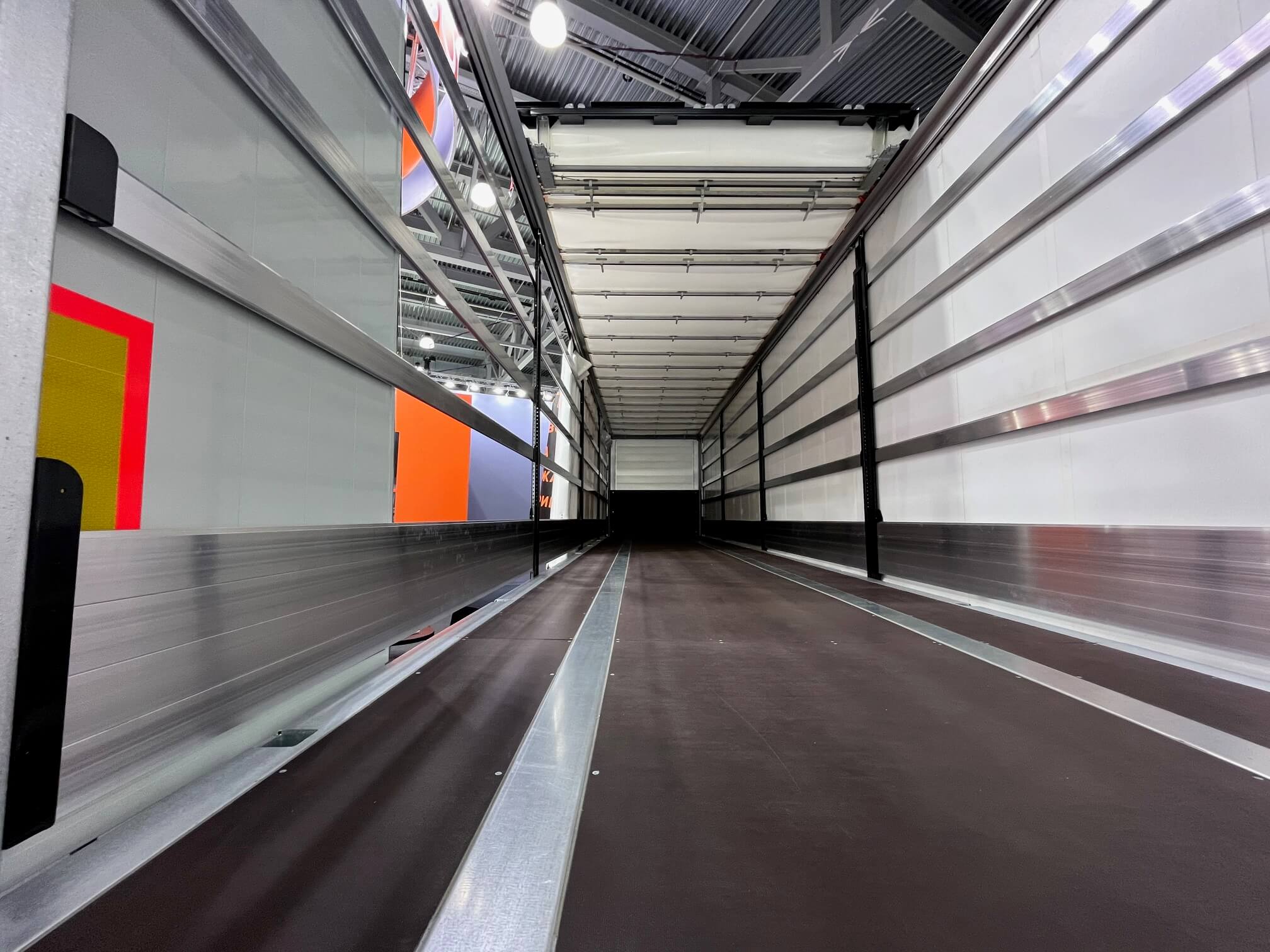

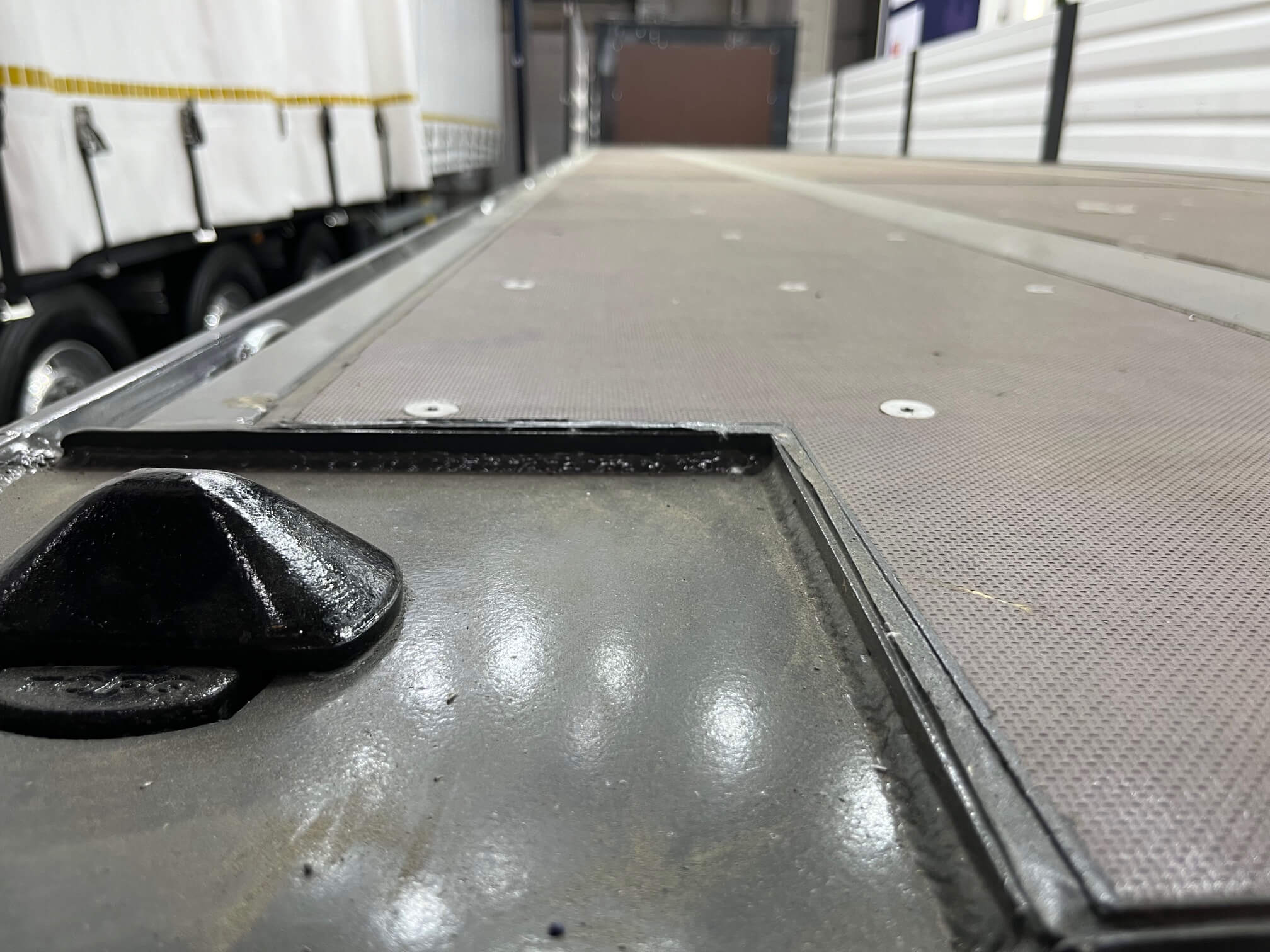

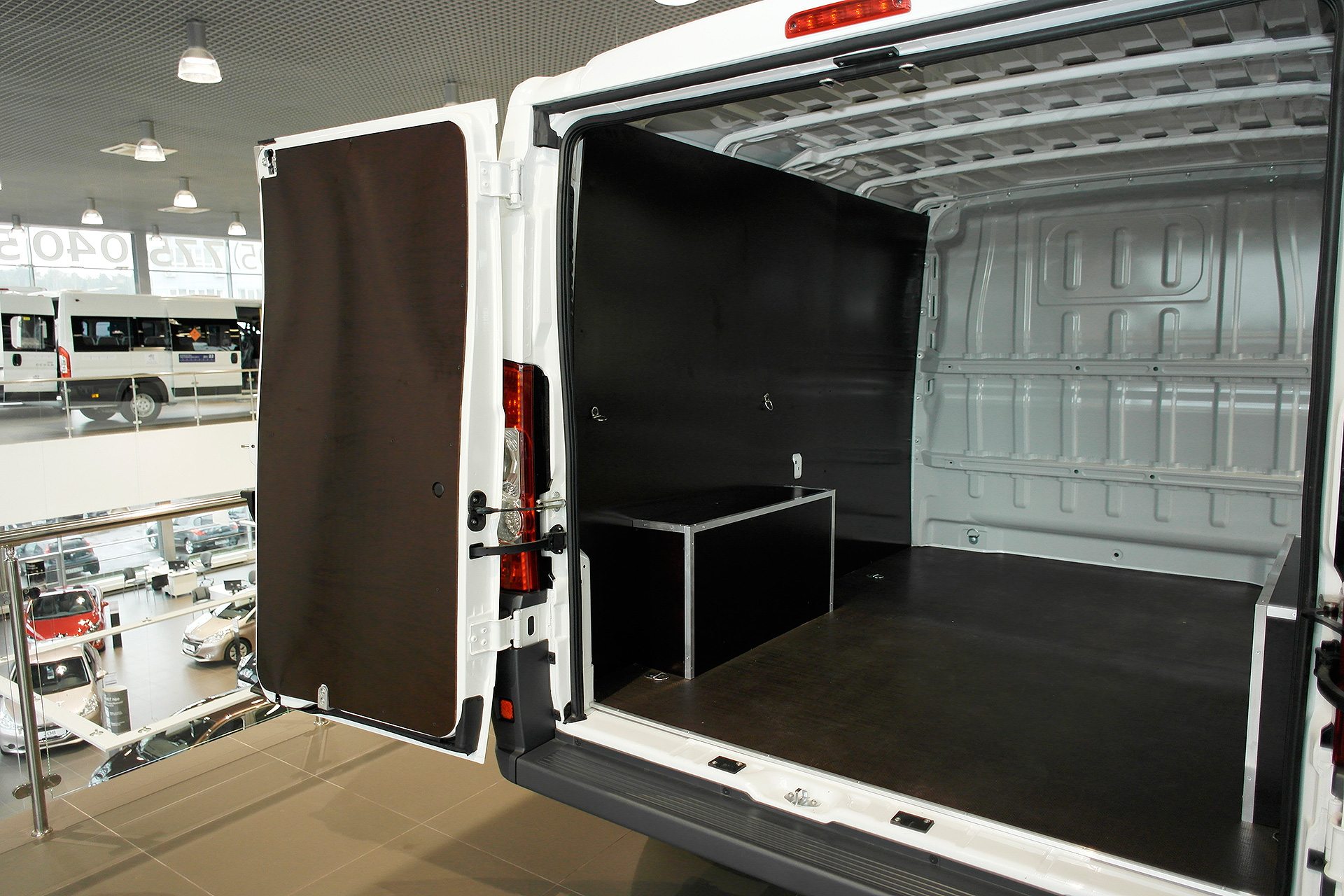

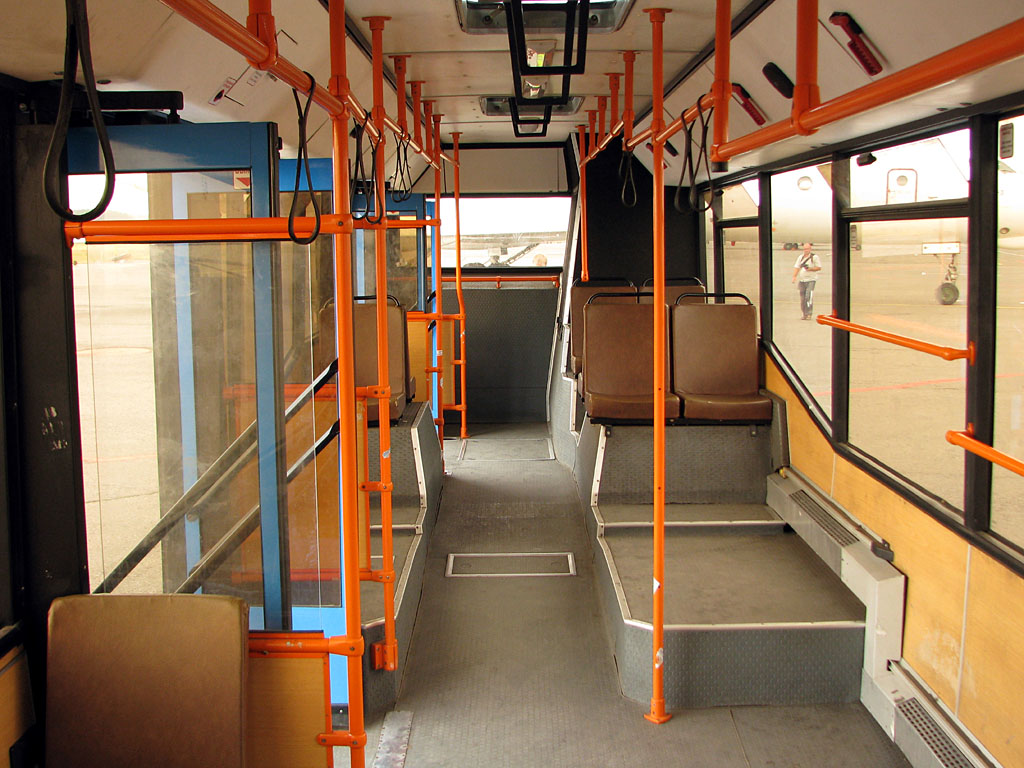

NORDECO Truck is 100% birch plywood with anti-slip mesh coating for floors of commercial vehicles, passenger buses and cargo platforms.



See more

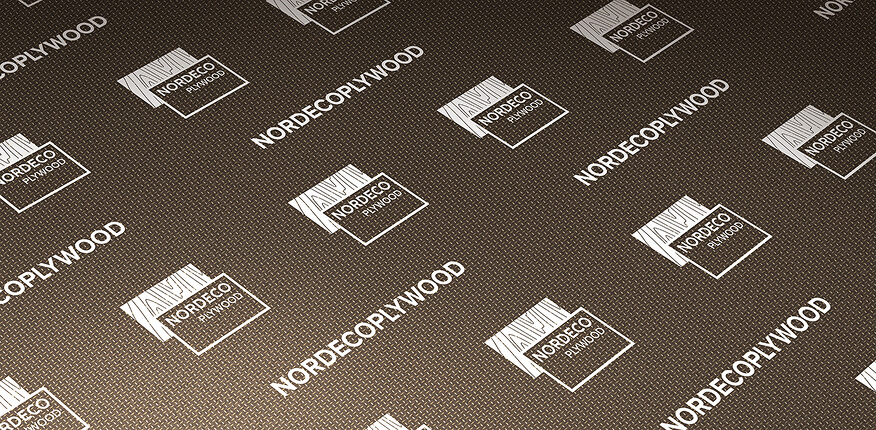

It is produced in a wide range of sizes – from 4×8 to 5×13 feet and thicknesses – from 9 to 40 mm. Coating is a phenolic paper with dark brown impregnation with a density of 120 and 220 g/m2, provides a high wear resistance. The edges are protected with acrylic paint in the color of the coating

Product features

Icon_01-1
High wear resistance
Icon_02-1
High moisture resistance
Icon_03-1
Slip-proof
Icon_04-1
Resistance to aggressive environments, including chemicals
Icon_05-1
Resistance to temperature fluctuations − from -40 to +50 °С

Characteristics

Technical characteristics
Thickness, mm 9-40

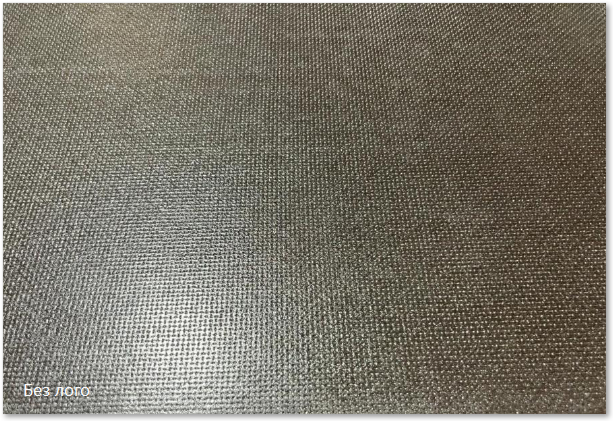

Surface type Smooth/wire mesh (F/W)
Film density, g/m² 120, 220
Formaldehyde emission class E0.5
Wear resistance of the film, cycles in Taber abrasion test ≥400
Water resistance High
Plywood density, kg/m3 640-700
Moisture content, % ≤12
Edge sealing Аcryl-based water resistant paint, dark brown
Sizes
Standard sizes, mm (ft)
1220х2440, 1250х2500 (4х8)
1220х3000, 1220х3300 (4х10)
1525х2500 (5х8)
1500х3000 (5х10)
1500х3300, 1525х3300 (5х11)
1525х4000 (5х13)
Thicknesses
Thickness mm Number of plies Tolerances on nominal thickness, mm Tolerance on thickness within one panel, mm
9 7 +0.4/-0.6 0.6
12 9 +0.5/-0.7
15 11 +0.6/-0.8
18 13 +0.7/-0.9
21 15 +0.8/-1.0
24 17 +0.9/-1.1 1.0
27 19 +1.0/-1.2
30 21 +1.1/-1.3
35 25 +1.3/-1.5
40 28 +1.4/-1.6
